ACT XT/Race Rigid 6 Pad Clutch Kit | Ford Mustang (96-01) (FM8-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Ford Mustang (96-01) (FM8-XTR6)

FM8-XTR6

Out of stock

$564.00 USD
$696.00 USD $564.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design that enhances performance under intense use, while all diaphragms undergo a four-stage heat-treating process to ensure durability and reliability. The 6-pad rigid race disc incorporates high-quality ceramic friction materials, providing excellent grip and consistent engagement. Constructed with precision cover stampings, the clutch components offer enhanced rigidity and stability, making it suitable for aggressive driving and racing applications.

This clutch kit is specifically designed for 1996–2001 Ford Mustang models, ensuring a direct fit for vehicles equipped with compatible manual transmissions. It is ideal for track use, high-performance street driving, or any application requiring maximum holding capacity. The kit includes all necessary components for installation, providing a straightforward upgrade for enthusiasts seeking increased power transfer and durability. Suitable for use in demanding environments, this clutch assembly enhances vehicle responsiveness and performance, making it a reliable choice for serious drivers and racers alike.

Overview

ACT XT/Race Rigid 6 Pad Kit

FM8-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 21.2
  • Torque Capacity (ft/lbs.): 735
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266

Applications

  • 1996-2001 Ford Mustang GT

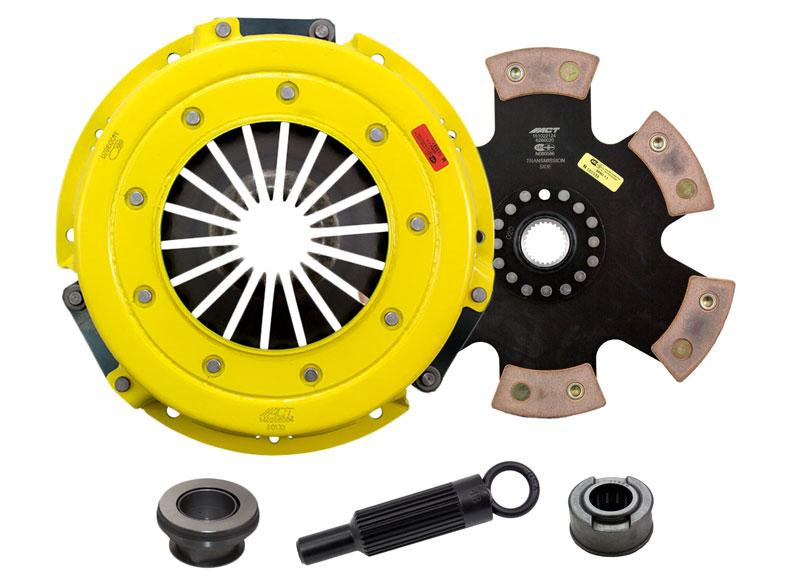

What's In The Box?

  • Clutch Pressure Plate (F013X)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)
  • Clutch Friction Disc (6266020)
  • Clutch Alignment Tool (ATF048)

References

Warranty

  • Manufacturer 1 Year Warranty
