ACT XT/Race Rigid 6 Pad Clutch Kit | Lexus IS300 (02-05) (TS5-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Lexus IS300 (02-05) (TS5-XTR6)

TS5-XTR6

Out of stock

$608.00 USD
$750.00 USD $608.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the Lexus IS300 (02-05) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The 6-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Overall, this clutch kit delivers superior engagement, increased holding capacity, and enhanced durability for aggressive street and track driving.

Designed specifically for 2002 to 2005 Lexus IS300 models, this clutch kit is a direct replacement for stock components, offering a significant upgrade in performance. It is suitable for high-performance applications, including racing and spirited driving, where maximum clamping force and reliability are required. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with the stock transmission, this clutch kit is ideal for enthusiasts seeking improved power transfer and clutch longevity in street, track, or competition environments.

Overview

ACT XT/Race Rigid 6 Pad Kit

TS5-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with OE dual-mass flywheel (not included).
  • Product Weight (lbs.): 16
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2002-2005 Lexus IS300

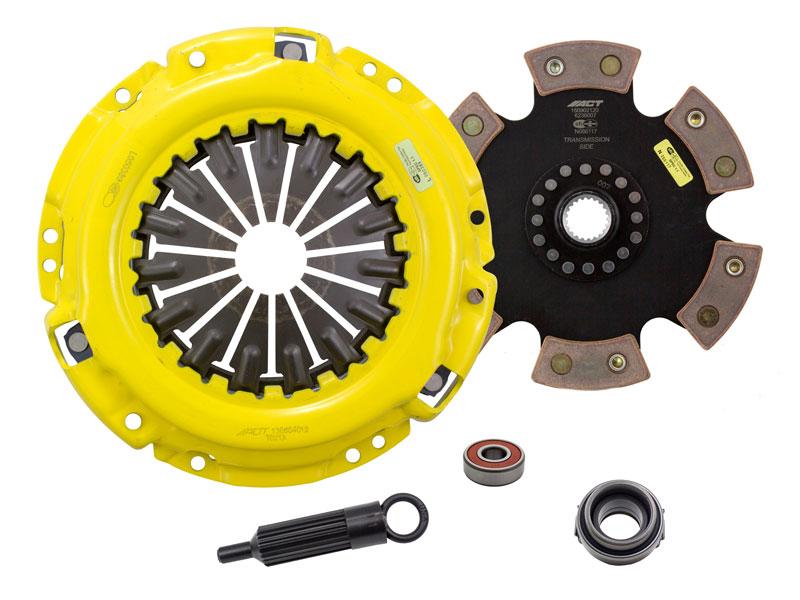

What's In The Box?

  • Clutch Friction Disc (6236007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB443)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
