ACT XT/Race Rigid 6 Pad Clutch Kit | Subaru BRZ / Toyota 86 / Scion FR-S (13-20) (SB7-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Subaru BRZ / Toyota 86 / Scion FR-S (13-20) (SB7-XTR6)

SB7-XTR6

In stock

$907.00 USD
$1,120.00 USD $907.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for Subaru BRZ, Toyota 86, and Scion FR-S (2013-2020) is a high-performance clutch system designed for demanding driving conditions. This kit features an Xtreme pressure plate that enhances clamp load, reduces deflection, and extends clutch life, making it suitable for aggressive street and track use. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The 6-pad rigid race disc utilizes high-quality ceramic friction materials, providing excellent heat resistance and friction stability for maximum power transfer and responsiveness.

This clutch kit is specifically engineered for vehicles within the 2013-2020 model years of Subaru BRZ, Toyota 86, and Scion FR-S, equipped with compatible engines and chassis configurations. It serves as a direct replacement or upgrade for stock clutch components, offering increased holding capacity and improved pedal feel for spirited driving or racing applications. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Ideal for track days, high-performance street driving, and competitive motorsports, this clutch system delivers reliable, high-end performance under demanding conditions.

Overview

ACT XT/Race Rigid 6 Pad Kit

SB7-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit).
  • Product Weight (lbs.): 25.2
  • Torque Capacity (ft/lbs.): 449
  • Torque Capacity Over OE: 1.66
  • Flywheel Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 2017-2020 Toyota 86
  • 2013-2020 Subaru BRZ
  • 2013-2016 Scion FR-S

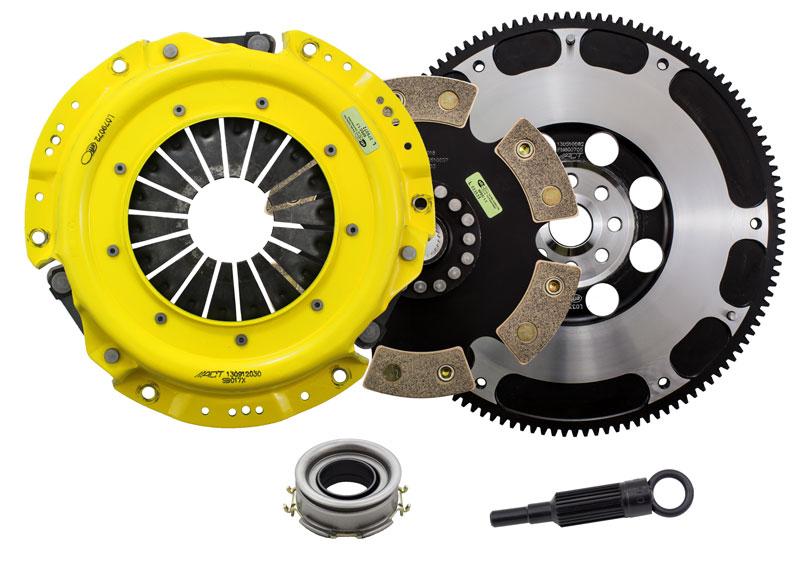

What's In The Box?

  • Clutch Flywheel (600705)
  • Clutch Friction Disc (6224018)
  • Clutch Alignment Tool (AT90)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB004)
  • Clutch Pressure Plate (SB017X)

References

Warranty

  • Manufacturer 1 Year Warranty
