• ACT Extreme Race Rigid 6 Pad Clutch Kit | Subaru BRZ / Toyota 86 / Scion FR-S (13-20) (SB8-XTR6)
1 1

ACT Extreme Race Rigid 6 Pad Clutch Kit | Subaru BRZ / Toyota 86 / Scion FR-S (13-20) (SB8-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | Subaru BRZ / Toyota 86 / Scion FR-S (13-20) (SB8-XTR6)

SB8-XTR6

In stock

$907.00 USD
$1,120.00 USD $907.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit for Subaru BRZ, Toyota 86, and Scion FR-S (2013-2020) is a high-performance clutch system designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The 6-pad rigid race discs are constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Overall, this clutch kit delivers superior engagement, increased holding capacity, and enhanced durability for spirited driving and track use.

Designed specifically for 2013-2020 Subaru BRZ, Toyota 86, and Scion FR-S models, this bolt-on kit serves as a direct replacement for stock clutch components. It is ideal for enthusiasts seeking improved performance for street, track, or competition applications. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatibility is optimized for vehicles with high-power modifications or those requiring a more robust clutch solution. This clutch kit enhances driving confidence by offering increased clamp force and reliable operation during aggressive driving scenarios.

Overview

ACT XT/Race Rigid 6 Pad Kit

SB8-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 23.9
  • Torque Capacity (ft/lbs.): 449
  • Torque Capacity Over OE: 1.66
  • Flywheel Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Conversion kit. Includes ACT Prolite flywheel. Must use ACT flywheel (included in kit).

Applications

  • 2017-2020 Toyota 86
  • 2013-2016 Scion FR-S
  • 2013-2020 Subaru BRZ

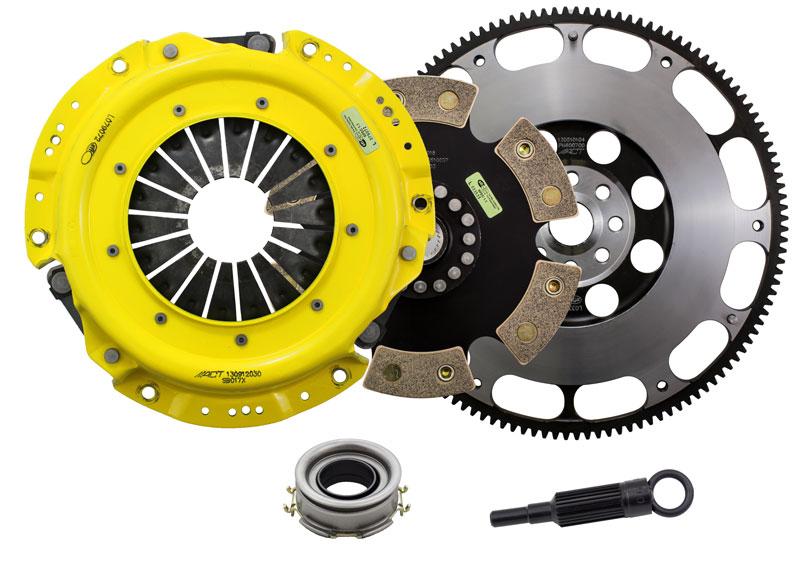

What's In The Box?

  • Clutch Flywheel (600700)
  • Clutch Friction Disc (6224018)
  • Clutch Alignment Tool (AT90)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB004)
  • Clutch Pressure Plate (SB017X)

References

Warranty

  • Manufacturer 1 Year Warranty
