ACT XT/Race Rigid 6 Pad Clutch Kit | Ford Mustang (93) (FM1-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Ford Mustang (93) (FM1-XTR6)

FM1-XTR6

Out of stock

$564.00 USD
$696.00 USD $564.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the Ford Mustang (93) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design and a four-stage heat-treating process. The pressure plate's precision cover stampings ensure rigidity and consistency, while the 6-pad rigid race discs utilize high-quality ceramic friction materials for superior grip and durability. This combination delivers exceptional performance for aggressive street and race applications, providing reliable engagement and longevity under high-stress conditions.

Designed specifically for the 1993 Ford Mustang, this clutch kit is suitable for models equipped with compatible engines and chassis configurations. It serves as a direct replacement or upgrade for stock components, ideal for track use, high-performance street driving, or racing scenarios. Installation involves bolt-on assembly, and the kit includes all necessary components for a complete upgrade. Suitable for drivers seeking maximum clamping force and durability, this clutch kit ensures consistent power transfer and reliable operation during intense driving sessions.

Overview

ACT XT/Race Rigid 6 Pad Kit

FM1-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 21.2
  • Torque Capacity (ft/lbs.): 735
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 10
  • Input Shaft Diameter (in.): 1.0625
  • Alignment Tool Included: Yes

Applications

  • 1986-1995 Ford Mustang LX, GT, SVT Cobra

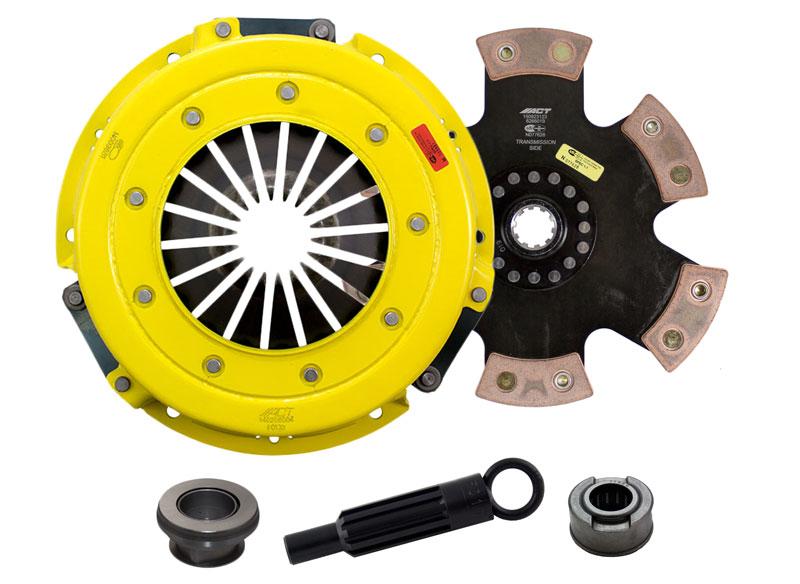

What's In The Box?

  • Clutch Friction Disc (6266019)
  • Clutch Alignment Tool (ATFC10)
  • Clutch Pressure Plate (F013X)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
