ACT Extreme Race Rigid 6 Pad Clutch Kit | Honda Civic (90) (HC4-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | Honda Civic (90) (HC4-XTR6)

SKU:HC4-XTR6

In stock

Regular price $531.00 USD
Regular price $656.00 USD Sale price $531.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit for Honda Civic (90) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 6-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. This assembly is engineered to deliver maximum power transfer, making it ideal for racing and aggressive street driving. Its robust construction and precision manufacturing ensure reliable operation and long-lasting performance.

Designed specifically for the Honda Civic (90) chassis, this clutch kit fits models equipped with compatible engines from 1990 onward. It is intended for use in high-performance applications, including racing and spirited driving, where maximum clamping force and durability are required. The kit is a direct replacement for stock components, offering a bolt-on installation that does not require modifications. It includes the pressure plate and race disc, ensuring a complete upgrade for your clutch system. Suitable for drivers seeking increased performance and reliability, this clutch kit enhances power handling and pedal feel for both street and track use.

Overview

ACT XT/Race Rigid 6 Pad Kit

HC4-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 10.4
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda CRX
  • 1989-1991 Honda Civic

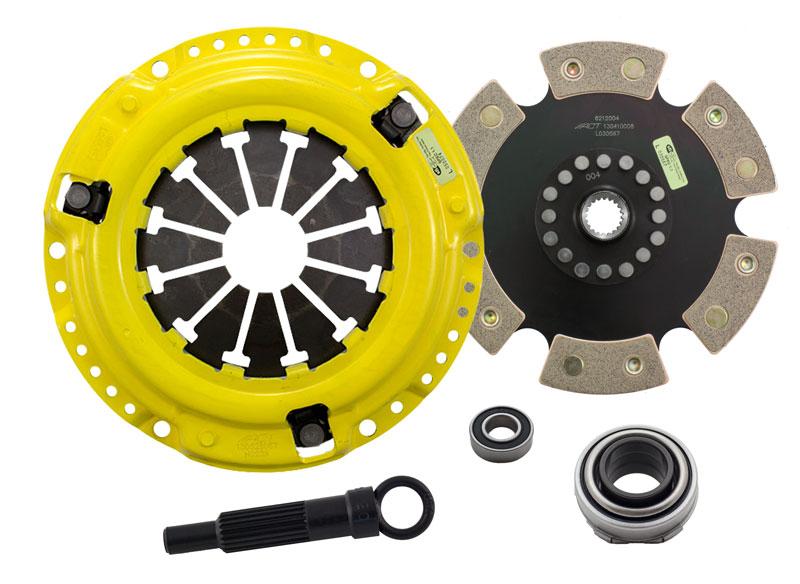

What's In The Box?

  • Clutch Friction Disc (6212004)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
