• ACT Extreme Race Rigid 6 Pad Clutch Kit | Nissan 200SX (96) (NX9-XTR6)
1 1

ACT Extreme Race Rigid 6 Pad Clutch Kit | Nissan 200SX (96) (NX9-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | Nissan 200SX (96) (NX9-XTR6)

NX9-XTR6

In stock

$535.00 USD
$660.00 USD $535.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 6-pad rigid race disc is constructed with high-quality ceramic friction materials, providing superior grip and heat resistance. This combination delivers exceptional power transfer, improved response, and increased durability for competitive racing or aggressive street driving.

Designed specifically for the Nissan 200SX (96) with the NX9 chassis code, this clutch kit is a direct replacement upgrade for stock components. It is suitable for use in high-performance applications, including track days and spirited driving, where maximum clamping force and reliability are required. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Compatible with vehicles equipped with similar specifications, this clutch kit enhances overall drivetrain performance and provides a robust solution for drivers seeking increased holding capacity and longevity.

Overview

ACT XT/Race Rigid 6 Pad Kit

NX9-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 10.6
  • Torque Capacity (ft/lbs.): 410
  • Torque Capacity Over OE: 1.36
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 18
  • Input Shaft Diameter (in.): 0.8125
  • Alignment Tool Included: Yes

Applications

  • 1991-1993 Nissan NX
  • 1991-2006 Nissan Sentra
  • 1995-1998 Nissan 200SX
  • 1991-2002 Infiniti G20

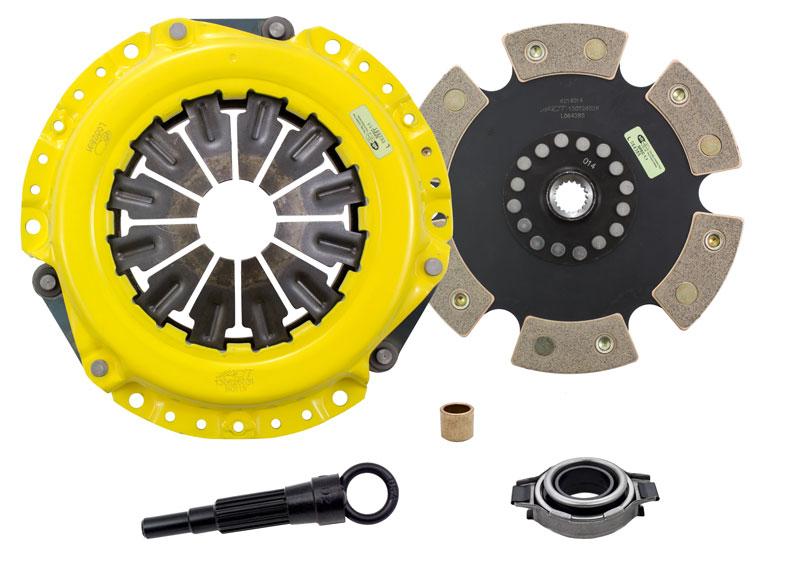

What's In The Box?

  • Clutch Friction Disc (6214014)
  • Clutch Alignment Tool (AT68)
  • Clutch Pressure Plate (N011X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB433)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
