ACT Extreme Race Rigid 6 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC1-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC1-XTR6)

TC1-XTR6

In stock

$564.00 USD
$696.00 USD $564.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate with an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch durability. The kit includes a 6-pad rigid race disc made from high-quality ceramic friction materials, ensuring maximum grip and consistent engagement. All components undergo a four-stage heat-treating process to deliver unparalleled performance and longevity. Precision cover stampings provide added rigidity and consistency, making this clutch kit suitable for aggressive driving and racing applications.

This clutch kit is specifically designed for the 1991 Geo Prizm XT and Race (TC1-XTR6) models. It is a direct replacement upgrade for stock clutch systems, offering improved holding capacity and heat resistance for high-stress driving. The kit is ideal for track use, street performance, or any application requiring a robust clutch solution. Installation involves replacing the existing clutch components with the included high-performance parts, ensuring a reliable upgrade for vehicles with modified or stock setups. This kit provides the durability and performance needed for competitive and spirited driving.

Overview

ACT XT/Race Rigid 6 Pad Kit

TC1-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 12.8
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 1.22
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Toyota Corolla
  • 1990-1991 Toyota Celica
  • 1990-1991 Geo Prizm
  • 1985-1989 Toyota MR2

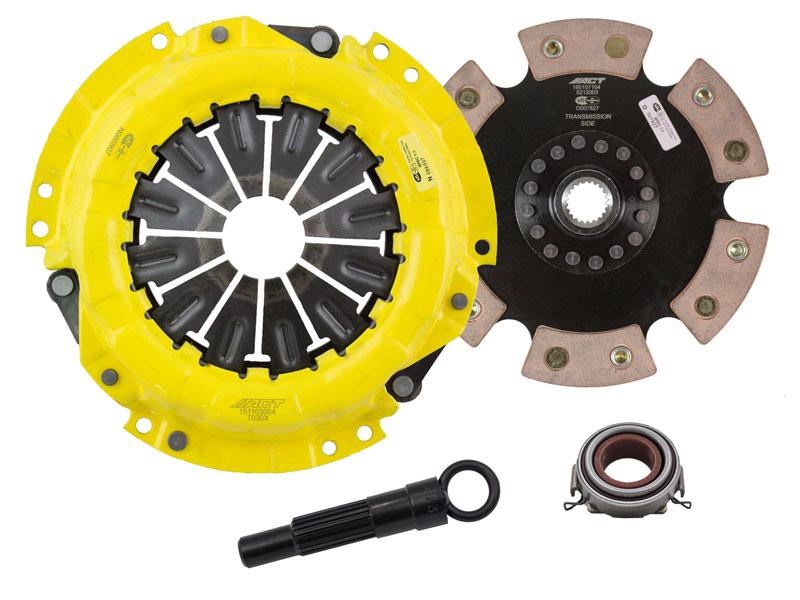

What's In The Box?

  • Clutch Friction Disc (6212003)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB371)
  • Clutch Pressure Plate (T030X)

References

Warranty

  • Manufacturer 1 Year Warranty
