ACT XT/Race Rigid 6 Pad Clutch Kit | Scion tC (2006) (TC7-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Scion tC (2006) (TC7-XTR6)

TC7-XTR6

In stock

$727.00 USD
$727.00 USD $727.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the 2006 Scion tC (model TC7-XTR6) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, with precision cover stampings that enhance rigidity. The kit includes a 6-pad rigid race disc constructed from high-quality ceramic friction materials, providing excellent grip and heat resistance for aggressive driving and racing applications.

This clutch kit is specifically engineered for the 2006 Scion tC equipped with the TC7 chassis code, making it a direct replacement for stock components. It is ideal for track use, high-performance street driving, or any scenario requiring maximum clamping force and durability. The installation involves replacing the existing clutch with this bolt-on assembly, ensuring a straightforward upgrade process. The kit provides all necessary components for a complete clutch overhaul, delivering improved power transfer, reduced slip, and enhanced overall performance for serious drivers seeking reliability and high-end performance.

Overview

ACT XT/Race Rigid 6 Pad Kit

TC7-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.1
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 1.06
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2009-2013 Toyota Matrix
  • 2006-2010 Scion tC
  • 2008-2015 Scion xB
  • 2009-2012 Toyota Corolla
  • 2007-2008 Toyota Camry

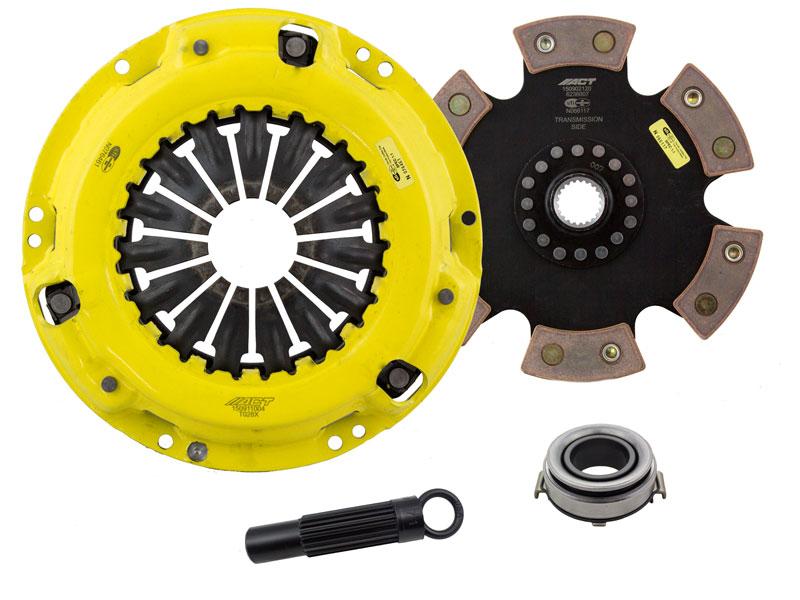

What's In The Box?

  • Clutch Friction Disc (6236007)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB084)
  • Clutch Pressure Plate (T028X)

References

Warranty

  • Manufacturer 1 Year Warranty
