• ACT XT/Race Rigid 6 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTR6)
1 1

ACT XT/Race Rigid 6 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTR6)

TS1-XTR6

Out of stock

$585.00 USD
$722.00 USD $585.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the Toyota 4Runner (1987) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load and reduces deflection, resulting in improved power transfer and clutch durability. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The 6-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Precision cover stampings contribute to the overall rigidity and consistency of the clutch assembly, making it suitable for aggressive driving and racing applications.

This clutch kit is specifically engineered for the 1987 Toyota 4Runner, offering a direct replacement for stock components. It is ideal for high-performance street driving, off-road adventures, or racing scenarios where durability and reliable engagement are critical. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Designed to withstand extreme conditions, this clutch assembly delivers consistent performance and enhanced pedal feel. It is compatible with the stock flywheel and requires standard installation procedures, making it suitable for enthusiasts seeking a robust upgrade for their vehicle.

Overview

ACT XT/Race Rigid 6 Pad Kit

TS1-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15.7
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1984-1987 Toyota Cressida
  • 1986-1988 Toyota Supra
  • 1985-1987 Toyota 4Runner
  • 1982-1985 Toyota Celica
  • 1985-1987 Toyota Pickup

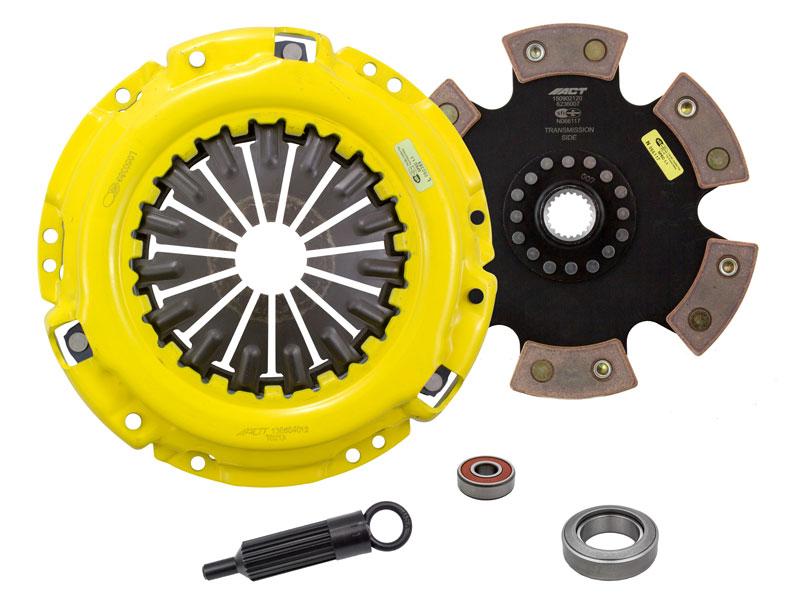

What's In The Box?

  • Clutch Friction Disc (6236007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
