• ACT Extreme Race Rigid 6 Pad Clutch Kit | Mazda Protege XT/Race (2001) (Z66-XTR6)
1 1

ACT Extreme Race Rigid 6 Pad Clutch Kit | Mazda Protege XT/Race (2001) (Z66-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | Mazda Protege XT/Race (2001) (Z66-XTR6)

Z66-XTR6

In stock

$653.00 USD
$806.00 USD $653.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit for the Mazda Protege XT (2001) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 6-pad rigid race discs are constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built for racing and aggressive street use, this clutch kit delivers reliable power transfer, improved torque capacity, and enhanced durability for competitive and spirited driving.

Designed specifically for the 2001 Mazda Protege XT, this clutch kit is a direct replacement for stock components, offering a bolt-on upgrade for increased performance. It is suitable for use in racing, track days, or high-performance street applications where maximum clamping force and durability are required. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with the Z66-XTR6 application, this clutch kit is ideal for drivers seeking a high-performance solution that can withstand aggressive driving and high heat conditions, providing consistent engagement and long-lasting performance.

Overview

ACT XT/Race Rigid 6 Pad Kit

Z66-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 12.8
  • Torque Capacity (ft/lbs.): 430
  • Torque Capacity Over OE: 1.29
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1993-1997 Mazda MX-6
  • 2001-2003 Mazda Protege
  • 2002-2003 Mazda Protege5
  • 1993-1997 Ford Probe
  • 1993-2002 Mazda 626

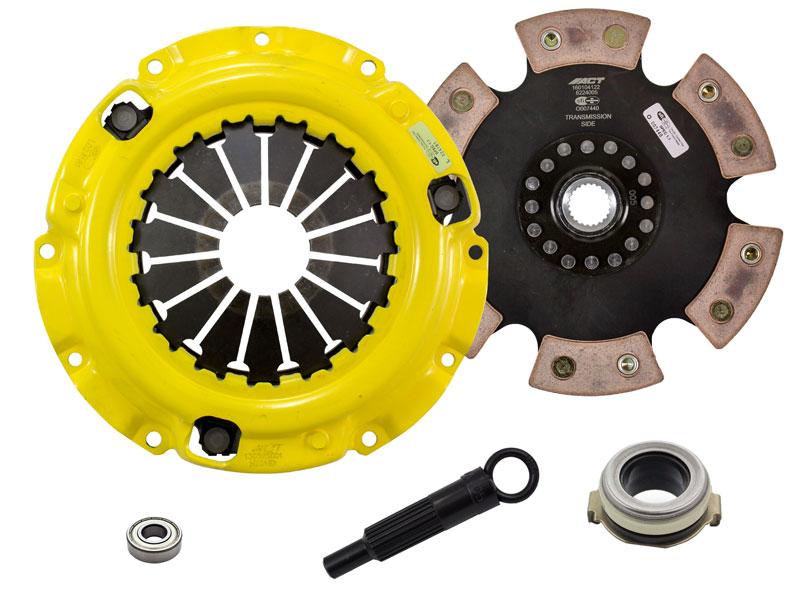

What's In The Box?

  • Clutch Friction Disc (6224005)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ018X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB110)

References

Warranty

  • Manufacturer 1 Year Warranty
