• ACT XT/Race Sprung 4-Pad Clutch Kit | BMW M3 E46 (01-06) (BM9-XTG4)
1 1

ACT XT/Race Sprung 4-Pad Clutch Kit | BMW M3 E46 (01-06) (BM9-XTG4)

ACT XT/Race Sprung 4-Pad Clutch Kit | BMW M3 E46 (01-06) (BM9-XTG4)

BM9-XTG4

Out of stock

$956.00 USD
$1,180.00 USD $956.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4-Pad Clutch Kit for the BMW M3 E46 (2001-2006) is a high-performance clutch system designed for demanding driving conditions. It features an Xtreme pressure plate that enhances clamp load and reduces deflection, making it suitable for aggressive street and race applications. The kit includes ACT's 4-pad spring-centered race disc, engineered for durability and consistent engagement. Constructed with precision and heat-treated through a four-stage process, the components deliver exceptional performance, longevity, and reliability. The diaphragm design maximizes clamping force while maintaining smooth operation, making this clutch kit ideal for enthusiasts seeking increased power transfer and durability.

This clutch kit is specifically engineered for 2001-2006 BMW M3 E46 models, fitting vehicles equipped with the original or upgraded engines within this chassis. It is a direct replacement for stock clutch components, offering improved holding capacity and responsiveness for street, track, or spirited driving. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. Suitable for high-performance driving, the ACT XT/Race Sprung 4-Pad Clutch Kit ensures reliable engagement and increased clutch life under demanding conditions.

Overview

2001-2006 BMW M3 E46 XT/Race Sprung 4-Pad Clutch Kit by ACT

BM9-XTG4 kit features an Xtreme pressure plate for the most demanding driver, and ACT's 4 pad spring-centered race disc.

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

ACT clutches deliver the maximum holding power through applying a series of sound engineering advancements to new — not rebuilt — components that maximize load and reduce flex. The result is maximum torque capacity, long life and clean, fast shifting.

Features

  • Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance.
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Please Note: California Residents - Prop 65 Warning.

Applications

  • 2001 - 2006 BMW M3 (E46)

Specifications

  • Disc Type: Sprung 4-Pad Race Disc
  • Disc Material: Ceramic
  • Pressure Plate Type: Xtreme
  • Torque Capacity Over OE: 129%
  • Torque Capacity (ft/lbs.): 702

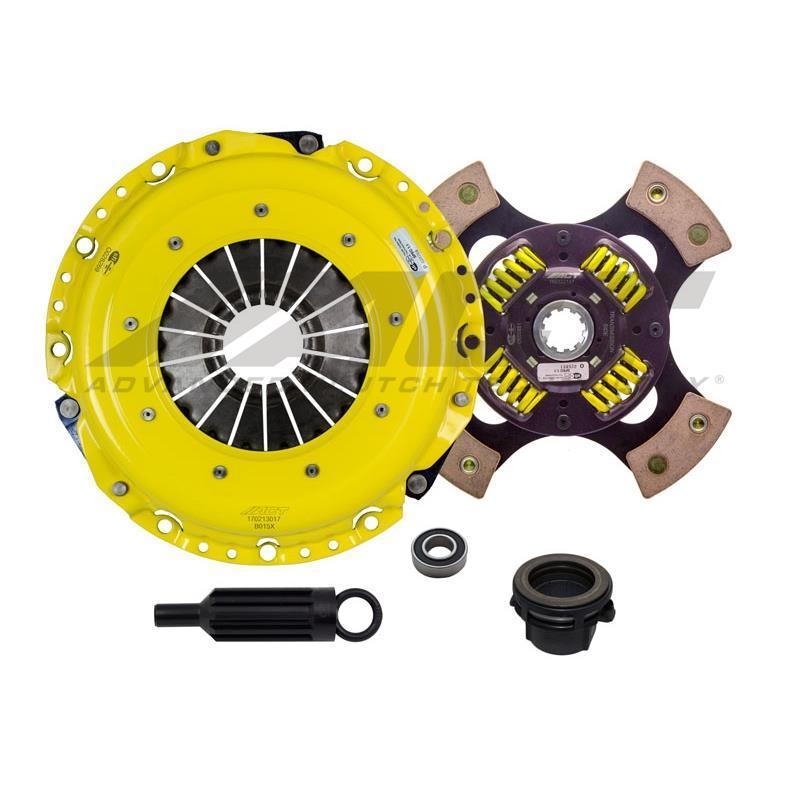

What's In The Box?

  • 1 - Xtreme Pressure Plate
  • 1 - Sprung 4-Pad Race Disc
  • 1 - Alignment Tool
  • Applicable Bearings

References

Warranty

  • ACT 1-Year Limited Warranty
