• ACT Extreme Race Sprung 4 Pad Clutch Kit | Lotus Exige (05-10) / Elise (05-11) (LE1-XTG4)
1 1

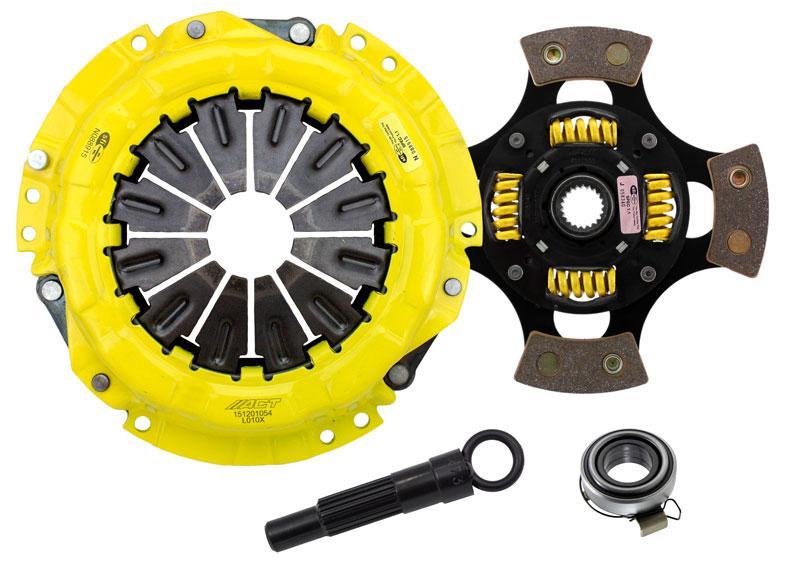

ACT Extreme Race Sprung 4 Pad Clutch Kit | Lotus Exige (05-10) / Elise (05-11) (LE1-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Lotus Exige (05-10) / Elise (05-11) (LE1-XTG4)

LE1-XTG4

In stock

$588.00 USD
$726.00 USD $588.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for Lotus Exige (05-10) and Elise (05-11) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design, which enhances holding capacity and durability under extreme stress. All diaphragms undergo a four-stage heat-treating process to ensure unparalleled performance and longevity. Precision cover stampings provide added rigidity and consistency, making this clutch kit suitable for aggressive driving and racing applications. Its robust construction ensures reliable power transfer and improved pedal feel, catering to enthusiasts seeking a high-quality upgrade.

This clutch kit is compatible with 2005-2010 Lotus Exige and 2005-2011 Lotus Elise models equipped with the XT/Race Sprung 4 Pad Clutch. It is a direct replacement designed for street and track use, offering a significant upgrade over stock components. Installation involves standard bolt-on procedures, making it suitable for experienced DIY mechanics or professional installation. The kit includes all necessary components for a complete clutch upgrade, ensuring optimal performance and durability. Ideal for racing, spirited driving, or high-performance street applications, this clutch kit provides a reliable solution for maximizing vehicle responsiveness and clutch life.

Overview

2005-2010 Lotus Exige / 2005-2011 Lotus Elise XT/Race Sprung 4 Pad Clutch Kit by ACT

LE1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.9
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 122%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 8.3
  • Clutch Disc Diameter (Millimeters): 212
  • Input Shaft Diameter (inches): 0.9375
  • Pressure Plate Type: Xtreme

Benefits

  • Moderate to heavy pedal effort
  • Aggressive engagement
  • OE to mild gear rattle
  • Moderate friction life
  • Uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 2005-2010 Lotus Exige
  • 2005-2011 Lotus Elise

What's In The Box?

  • 1 - ACT XT/Race Sprung 4 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
View full details
