ACT Extreme Race Sprung 4 Pad Clutch Kit | Suzuki Esteem XT/Race (SZ1-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Suzuki Esteem XT/Race (SZ1-XTG4)

SZ1-XTG4

Out of stock

$679.00 USD
$679.00 USD $679.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Suzuki Esteem XT/Race (SZ1-XTG4) is a high-performance clutch system designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The kit includes a four-pad spring-centered race disc with spring-center construction, providing reliable engagement and smooth operation. Built with precision cover stampings for rigidity, this clutch kit delivers maximum power transfer and enhanced durability for racing or spirited driving.

Designed for Suzuki Esteem models from 1995 to 2002, this clutch kit is suitable for high-performance street and race applications. It is a direct replacement for stock components, offering improved clamp force and heat resistance. The kit is ideal for drivers seeking increased performance and longevity in demanding environments. Installation involves bolt-on replacement of existing clutch components, making it suitable for experienced enthusiasts and professional mechanics. The package includes all necessary components for a complete upgrade, ensuring optimal clutch engagement and durability during intense driving sessions.

Overview

XT/Race Sprung 4 Pad Clutch Kit by ACT

SZ1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 8.9
  • Torque Capacity (ft/lbs.): 290
  • Torque Capacity Over OE: 150%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 7.5
  • Clutch Disc Diameter (Millimeters): 190
  • Input Shaft Diameter (inches): 0.75
  • Pressure Plate Type: Xtreme

Benefits

  • Moderate to heavy pedal effort
  • Aggressive engagement
  • Increased gear rattle
  • Moderate friction life
  • Rigid design may increase spline wear
  • Uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1989-2001 Suzuki Swift
  • 1987-1988 Chevrolet Sprint
  • 1992-1997 Geo Metro
  • 1995-2001 Suzuki Esteem

What's In The Box?

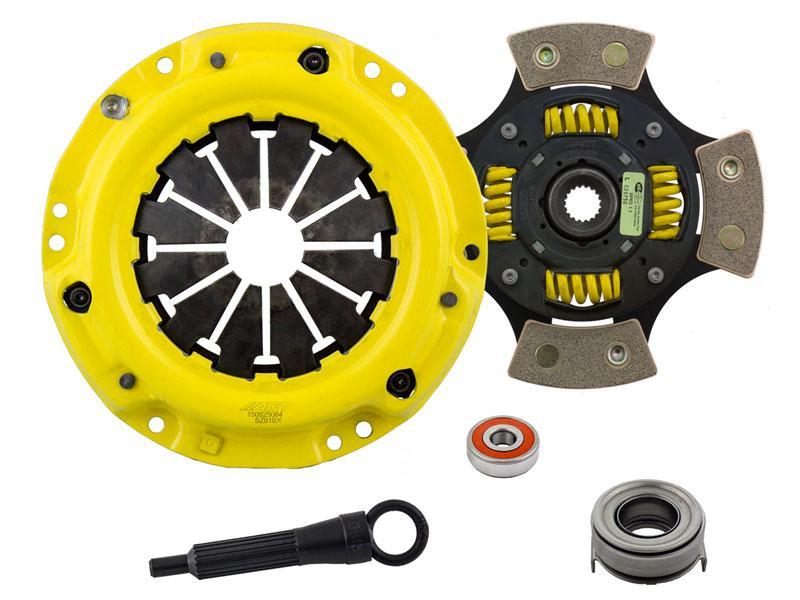

  • 1 - ACT XT/Race Sprung 4 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
View full details
