ACT Extreme Race Sprung 4 Pad Clutch Kit | Multiple Toyota Fitments (TL2-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Multiple Toyota Fitments (TL2-XTG4)

TL2-XTG4

Out of stock

$670.00 USD
$670.00 USD $670.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit is a high-performance clutch system designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under extreme conditions. The inclusion of a four-pad spring-centered race disc enhances engagement stability and power transfer, making it suitable for aggressive driving and racing applications. Constructed with precision stampings and high-quality materials, this clutch kit delivers reliable, high-capacity performance for serious enthusiasts.

Compatible with a range of Toyota models including Corolla, Paseo, and Tercel, this clutch kit fits vehicles from various years and engine configurations. It is intended for street and track use, providing a direct bolt-on upgrade for enhanced torque capacity and durability. The kit includes all necessary components for installation, ensuring a straightforward replacement process. Designed for drivers seeking maximum performance and longevity, this clutch system is ideal for racing, spirited driving, or heavy-duty daily use on compatible Toyota vehicles.

Overview

Toyota Corolla/Paseo/Tercel XT/Race Clutch Kit by ACT

TL2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
  • Moderate friction life, extended by ACT's exclusive diaphragm design
  • Constructed from select ceramic friction materials for high heat tolerance and maximum performance
  • Carefully engineered, precisely assembled, accurately balanced
  • Recommended for high horsepower street or race use
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

PLEASE NOTE

For use with the factory flywheel

Applications

  • 1990 - 1991 Toyota Corolla
  • 1986 - 1991 Toyota Corolla LE/DLX
  • 1987 - 1988 Toyota Corolla FX/FX16
  • 1988 - 1991 Toyota Corolla SR5
  • 1992 - 1998 Toyota Paseo
  • 1991 - 1996 Toyota Tercel

Benefits

  • Increased Burst Strength
  • Faster Response and Quicker Shifts
  • Improved Clutch System Performance
  • Increased Clamp Load

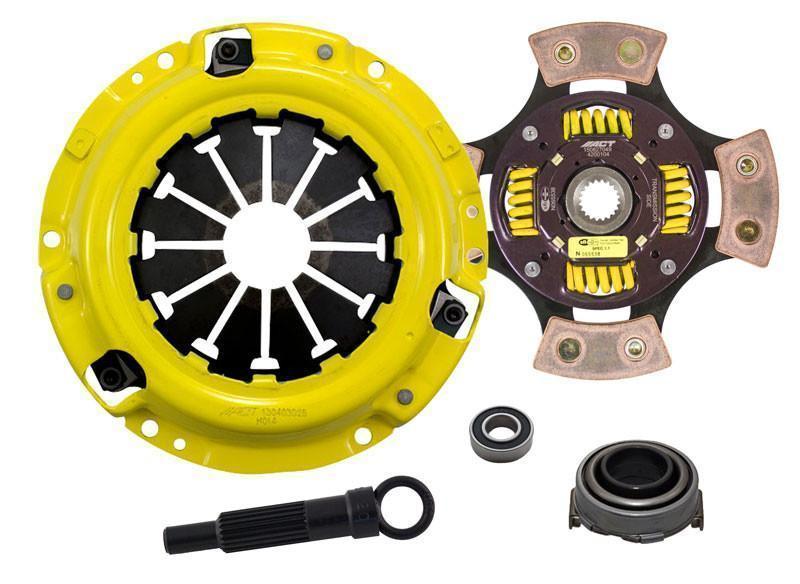

What's In The Box?

  • 1 - ACT Race Disc
  • 1 - ACT XT Pressure Plate
  • Necessary Hardware (if applicable)
  • Instructions/Manuals(if applicable)
  • Warranty Information

References

Warranty



ACT 1 Year Limited Warranty
