ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Corona XT/Race (69-70) (TK1-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Corona XT/Race (69-70) (TK1-XTG4)

TK1-XTG4

In stock

$533.00 USD
$658.00 USD $533.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Toyota Corona XT/Race (69-70) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 4-pad spring-centered race disc is engineered to provide optimal damping and engagement, making it suitable for racing and high-performance applications. Constructed with precision cover stampings, the clutch components deliver increased rigidity and reliability, ensuring maximum power transfer and minimal slip during aggressive driving.

Designed for 1969–1970 Toyota Corona XT models, this clutch kit is a direct replacement for stock components, offering a significant upgrade in performance. It is ideal for track use, racing, or spirited driving where enhanced clamping force and durability are essential. The kit includes all necessary components for installation, providing a straightforward bolt-on upgrade. Compatibility is specific to the Toyota Corona XT with the appropriate engine and chassis configuration, ensuring proper fitment and function. This clutch kit is engineered to withstand high heat and stress, making it a reliable choice for drivers seeking maximum performance and longevity in demanding conditions.

Overview

ACT XT/Race Sprung 4 Pad Kit

TK1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.8
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1969-1970 Toyota Corona

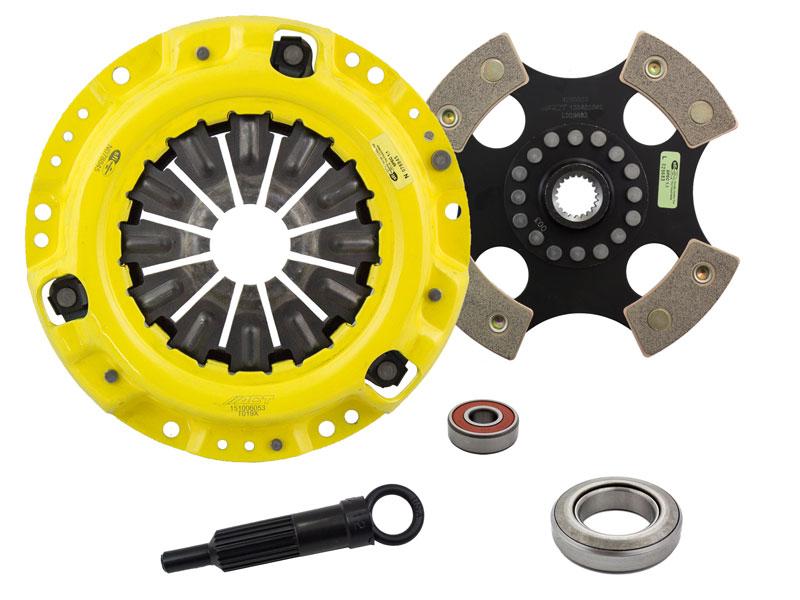

What's In The Box?

  • Clutch Friction Disc (4200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB010)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
