ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Corona (70-71) (TK2-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Corona (70-71) (TK2-XTG4)

TK2-XTG4

In stock

$537.00 USD
$663.00 USD $537.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Toyota Corona (70-71) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's Xtreme pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The inclusion of a four-pad spring-centered race disc provides optimal damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components deliver rigidity and reliability, ensuring maximum power transfer and minimal slip during high-stress use.

Designed specifically for 1970-1971 Toyota Corona models, this clutch kit is a direct replacement and upgrade for stock components. It is compatible with vehicles equipped with the original engine and transmission setup, offering a bolt-on installation for ease of use. The kit is ideal for track days, spirited driving, or any application requiring enhanced clutch performance. It includes all necessary components for installation, ensuring a seamless upgrade process. Suitable for street and race use, this clutch kit provides increased holding capacity and improved pedal feel, making it a reliable choice for performance-oriented drivers.

Overview

ACT XT/Race Sprung 4 Pad Kit

TK2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.7
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1970-1971 Toyota Corona

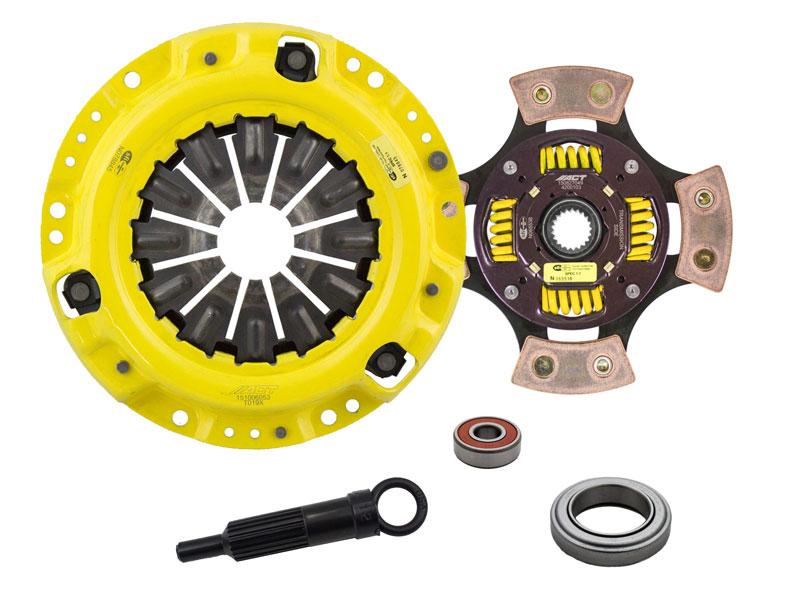

What's In The Box?

  • Clutch Friction Disc (4200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB005)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
