ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTG4)

TL1-XTG4

In stock

$660.00 USD
$660.00 USD $660.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for Toyota Corolla XT/Race (1980-1987) is a high-performance clutch system designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The inclusion of a four-pad spring-centered race disc provides optimal damping and engagement characteristics, making it suitable for racing and high-stress applications. Constructed with precision cover stampings, the clutch components deliver increased rigidity and reliability, making this kit ideal for drivers seeking maximum performance and longevity.

Designed for 1980-1987 Toyota Corolla XT/Race models, this clutch kit is a direct replacement upgrade for stock components. It is engineered to handle high horsepower and aggressive driving styles, whether on the street or track. The kit is a bolt-on installation, requiring no modifications for proper fitment. It includes all necessary components for a complete clutch replacement, ensuring seamless compatibility with the specified vehicle applications. This clutch kit is perfect for racing enthusiasts, track day participants, or serious street drivers looking to improve their vehicle’s clutch engagement, durability, and overall performance.

Overview

ACT XT/Race Sprung 4 Pad Kit

TL1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.9
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1980-1987 Toyota Corolla

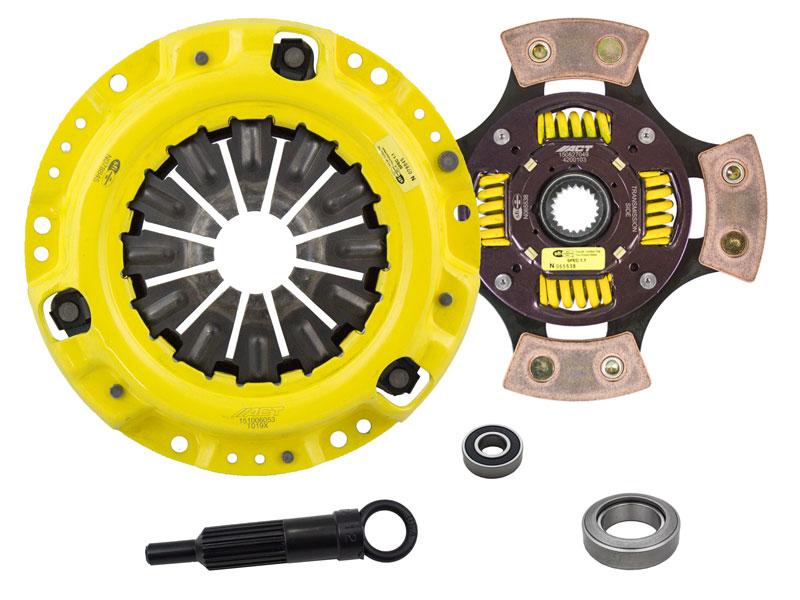

What's In The Box?

  • Clutch Friction Disc (4200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1001)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
