ACT Extreme Race Sprung 4 Pad Clutch Kit | Ford Ranger (83-84) (FC2-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Ford Ranger (83-84) (FC2-XTG4)

FC2-XTG4

In stock

$580.00 USD
$716.00 USD $580.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for Ford Ranger (1983-1984) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit delivers increased clamp load, reduced deflection, and enhanced durability, making it suitable for aggressive street and race applications. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The precision cover stampings provide added rigidity and consistency, while the four-pad spring-centered race disc offers optimal damping and engagement characteristics. Overall, this clutch kit is engineered to withstand high torque loads and intense driving environments, providing reliable power transfer and improved pedal feel.

Designed for 1983-1984 Ford Ranger models, this clutch kit is a direct replacement for stock components, offering a significant upgrade in performance. It is compatible with vehicles equipped with standard or modified engines requiring a robust clutch solution. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Ideal for racing, off-road, or high-performance street use, this clutch assembly enhances vehicle responsiveness and durability under extreme conditions. Its sprung design helps absorb shock and vibration, contributing to smoother operation during aggressive driving or towing. This ACT clutch kit is a reliable choice for enthusiasts seeking maximum performance and longevity from their clutch system.

Overview

ACT XT/Race Sprung 4 Pad Kit

FC2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.5
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1983-1984 Ford Ranger

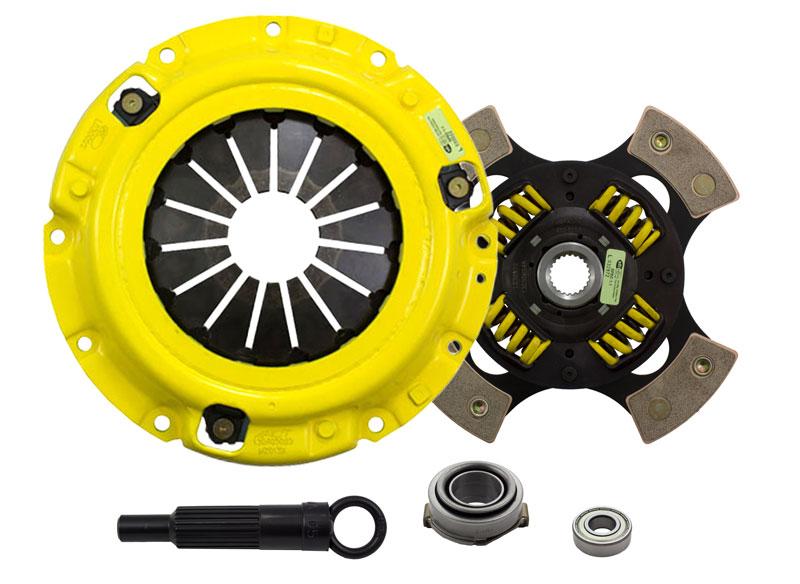

What's In The Box?

  • Clutch Friction Disc (4224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ013X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
