ACT XT/Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (83-91) (ZX2-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (83-91) (ZX2-XTG4)

ZX2-XTG4

Out of stock

$728.00 USD
$728.00 USD $728.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit for the Mazda RX-7 (83-91) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit enhances clamp load, minimizes deflection, and extends clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The clutch disc incorporates a four-pad spring-centered race design, which effectively damps torsional vibrations and provides smooth engagement. Constructed with precision cover stampings, the components deliver rigidity and reliability, making this kit suitable for high-power applications and aggressive driving.

This clutch kit is specifically engineered for 1983-1991 Mazda RX-7 models, compatible with various engine configurations within this chassis. It is intended for track use, high-performance street driving, or racing scenarios where maximum clamping force and durability are required. The assembly is a bolt-on replacement, offering straightforward installation without modifications. The kit includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade for enthusiasts seeking enhanced performance and longevity. Proper fitment and application are critical for optimal operation, making this kit an ideal choice for serious drivers and racers.

Overview

ACT XT/Race Sprung 4 Pad Kit

ZX2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.5
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1983-1991 Mazda RX-7

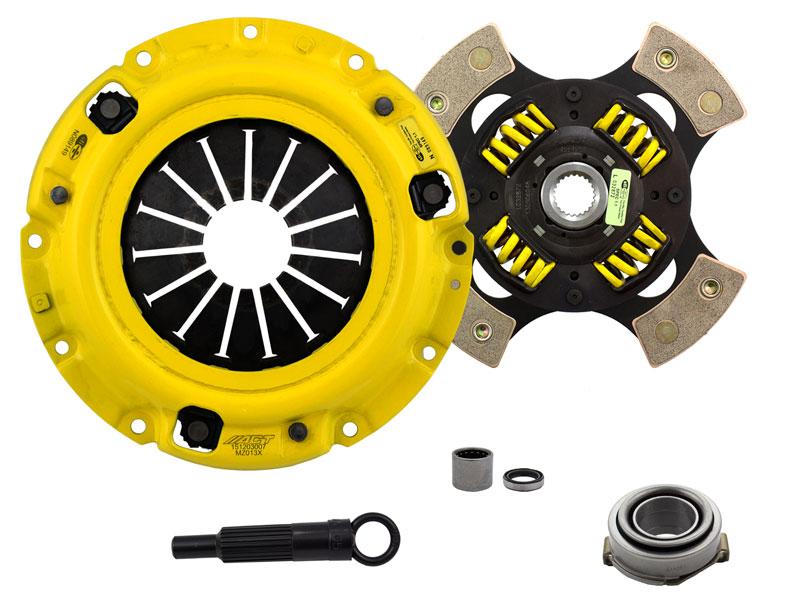

What's In The Box?

  • Clutch Friction Disc (4224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ013X)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
