ACT XT/Race Sprung 4 Pad Clutch Kit | Mazda B2600 (87-89) (ZT2-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Mazda B2600 (87-89) (ZT2-XTG4)

ZT2-XTG4

In stock

$601.00 USD
$742.00 USD $601.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit for the Mazda B2600 (87-89) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate employs an exclusive diaphragm design that undergoes a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The kit includes a four-pad spring-centered race disc with spring-center construction, which effectively damps torsional vibrations and improves engagement. Constructed with precision cover stampings, the components deliver rigidity and reliability, making it suitable for aggressive street or race applications.

This clutch kit is specifically engineered for 1987-1989 Mazda B2600 models, compatible with vehicles equipped with the appropriate engine and chassis configurations. It serves as a direct replacement or upgrade for stock clutch components, ideal for drivers seeking increased performance and durability. The kit is designed for bolt-on installation, providing a straightforward upgrade path for enthusiasts and racers. Suitable for street, track, or off-road use, this clutch assembly enhances power transfer and pedal feel, ensuring reliable operation during high-stress driving scenarios.

Overview

ACT XT/Race Sprung 4 Pad Kit

ZT2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 16
  • Torque Capacity (ft/lbs.): 560
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme

Applications

  • 1987-1989 Mazda B2600

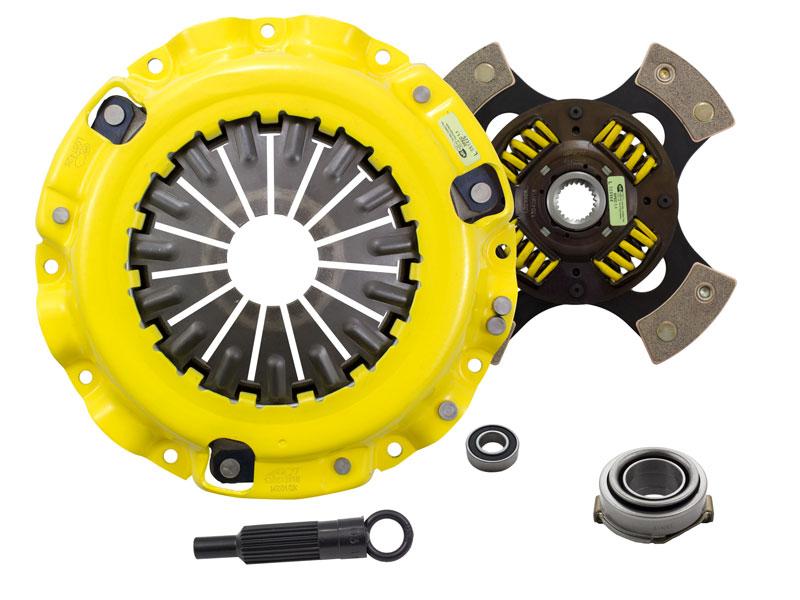

What's In The Box?

  • Clutch Friction Disc (4240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
