ACT XT/Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XTG4)

Z65-XTG4

Out of stock

$610.00 USD
$753.00 USD $610.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit for the Mazda RX-7 (87-91) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design. The pressure plate undergoes a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The clutch disc incorporates a four-pad spring-centered race design, which effectively damps torsional vibrations and provides smooth engagement. Constructed with precision cover stampings, the components deliver rigidity and reliability, making this kit suitable for aggressive street or track use.

This clutch kit is specifically engineered for 1987 to 1991 Mazda RX-7 models, compatible with various engine configurations. It serves as a direct replacement for stock clutch components, offering increased holding capacity and improved heat resistance for high-performance driving. Installation involves standard bolt-on procedures, making it suitable for enthusiasts and professionals alike. The kit includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade. Ideal for racing, spirited street driving, or track days, this clutch kit provides enhanced grip, durability, and consistent engagement for the most demanding applications.

Overview

ACT XT/Race Sprung 4 Pad Kit

Z65-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Flywheel requires counterweight (not included).
  • Product Weight (lbs.): 16
  • Torque Capacity (ft/lbs.): 560
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1

Applications

  • 1987-1991 Mazda RX-7

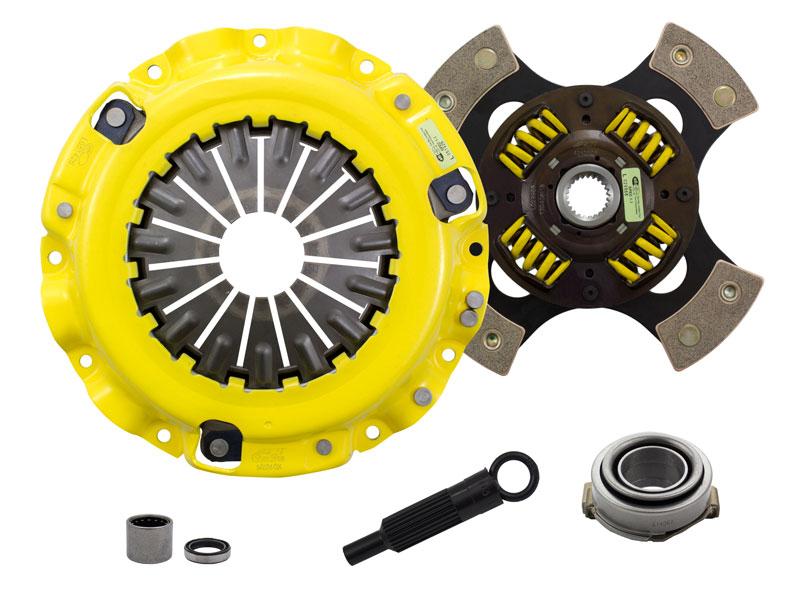

What's In The Box?

  • Clutch Friction Disc (4240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
