• ACT XT/Race Sprung 4 Pad Clutch Kit | Honda Civic (1988) (HC7-XTG4)
1 1

ACT XT/Race Sprung 4 Pad Clutch Kit | Honda Civic (1988) (HC7-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Honda Civic (1988) (HC7-XTG4)

HC7-XTG4

Out of stock

$551.00 USD
$680.00 USD $551.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit for the 1988 Honda Civic (HC7-XTG4) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The kit includes a 4-pad spring-centered race disc with spring-center construction, providing effective damping and engagement characteristics. Constructed with precision cover stampings, this clutch offers enhanced rigidity and reliability, making it suitable for aggressive driving and racing applications.

This clutch kit is specifically engineered for the 1988 Honda Civic HC7 chassis with compatible engine configurations. It serves as a direct replacement and upgrade for stock clutch components, delivering improved holding capacity and responsiveness. The assembly is designed for bolt-on installation, ensuring a straightforward upgrade process. Ideal for track use, high-performance street driving, or motorsport applications, this clutch kit provides the durability and performance needed for demanding driving scenarios. The kit includes all necessary components for installation, ensuring a comprehensive upgrade for serious enthusiasts.

Overview

ACT XT/Race Sprung 4 Pad Kit

HC7-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 10.6

Applications

  • 1988-1988 Honda Civic

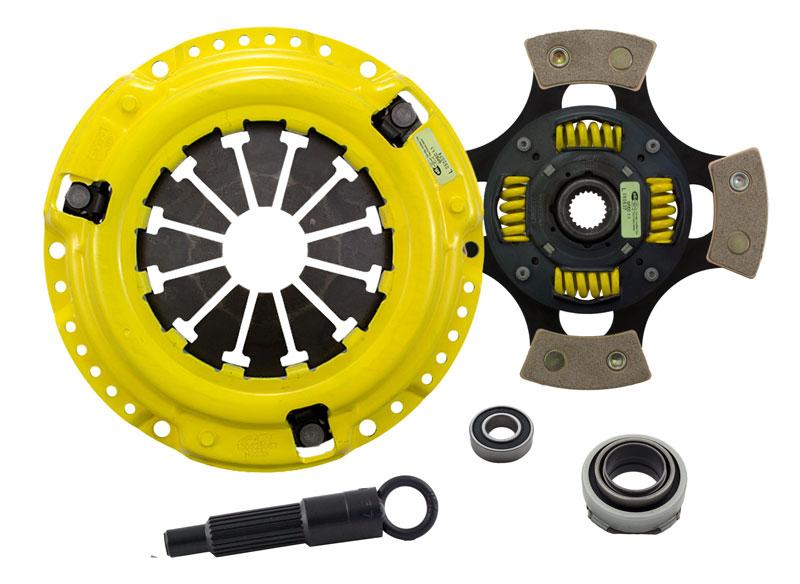

What's In The Box?

  • Clutch Friction Disc (4212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
