ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Celica (89-93) (TC4-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Celica (89-93) (TC4-XTG4)

TC4-XTG4

Out of stock

$660.00 USD
$815.00 USD $660.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Toyota Celica (89-93) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings enhance rigidity and stability during operation. The kit includes a 4-pad spring-centered race disc with spring-center construction that effectively damps torsional vibrations, providing smooth engagement and reliable power transfer. Built with quality materials, this clutch kit delivers maximum holding capacity and longevity for spirited driving and racing applications.

Designed for 1989–1993 Toyota Celica models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street, track, and performance driving where high clamp loads and durability are essential. The assembly is a bolt-on installation, requiring no modifications for proper fitment. The kit typically includes the pressure plate, clutch disc, and release bearing, ensuring comprehensive replacement. Compatible with stock or upgraded flywheels, this clutch kit is ideal for drivers seeking increased performance and reliability in demanding conditions, making it a popular choice for enthusiasts and racers alike.

Overview

ACT XT/Race Sprung 4 Pad Kit

TC4-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.3
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1989-1993 Toyota Celica

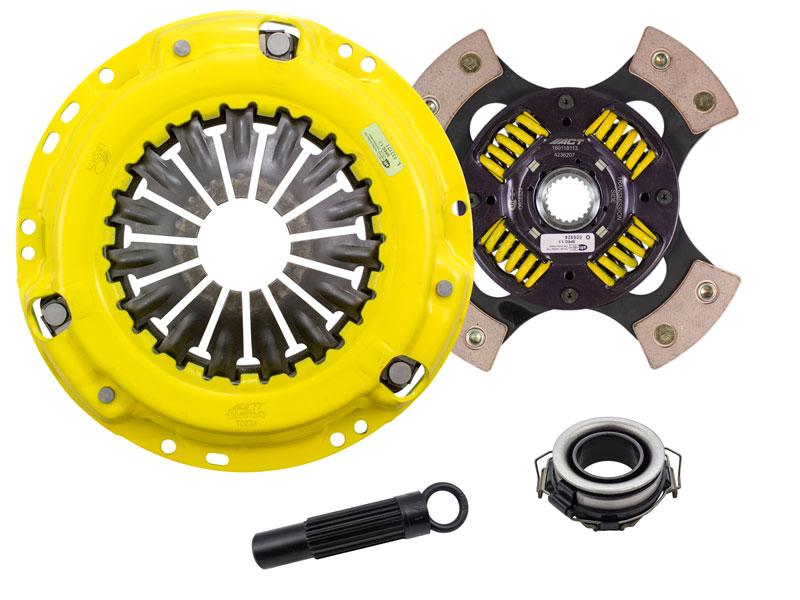

What's In The Box?

  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023X)
  • Clutch Friction Disc (4236207)

References

Warranty

  • Manufacturer 1 Year Warranty
