• ACT Extreme Race Sprung 4 Pad Clutch Kit | Acura Integra XT/Race (90-91) (AI2-XTG4)
1 1

ACT Extreme Race Sprung 4 Pad Clutch Kit | Acura Integra XT/Race (90-91) (AI2-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Acura Integra XT/Race (90-91) (AI2-XTG4)

AI2-XTG4

Out of stock

$612.00 USD
$755.00 USD $612.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Acura Integra XT/Race (90-91) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and maximizes clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings enhance rigidity. The 4-pad spring-centered race disc provides optimal damping and engagement characteristics, making it suitable for aggressive driving and racing applications. Constructed with quality materials, this clutch kit delivers reliable power transfer and enhanced durability for intense use.

Designed specifically for 1990-1991 Acura Integra models, this clutch kit is a direct replacement upgrade for stock components. It is ideal for street performance, track use, or racing scenarios where high clamp loads and durability are essential. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Compatibility is optimized for Integra models with specific engine configurations, providing a secure fit and reliable operation. Whether for daily driving or competitive racing, this ACT clutch kit offers increased performance and longevity to meet the demands of serious enthusiasts.

Overview

ACT XT/Race Sprung 4 Pad Kit

AI2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.7
  • Torque Capacity (ft/lbs.): 410
  • Torque Capacity Over OE: 1.2
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1991 Acura Integra

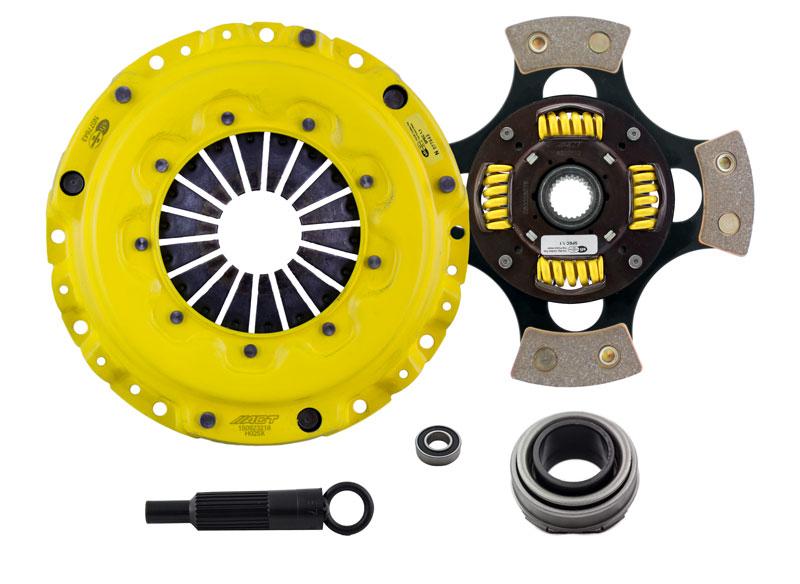

What's In The Box?

  • Clutch Friction Disc (4220112)
  • Clutch Alignment Tool (AT87)
  • Clutch Pressure Plate (H025X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
