ACT Extreme Race Sprung 4 Pad Clutch Kit | Honda Prelude (90-91) (HP4-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Honda Prelude (90-91) (HP4-XTG4)

HP4-XTG4

Out of stock

$768.00 USD
$768.00 USD $768.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for Honda Prelude (90-91) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit provides increased clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The 4-pad spring-centered race disc employs spring-center construction to effectively dampen torsional vibrations, resulting in smoother engagement and improved power transfer. Constructed with precision cover stampings, this clutch kit offers rigidity and reliability for serious drivers seeking maximum performance.

Designed specifically for 1990-1991 Honda Prelude models, this clutch kit is suitable for engines requiring a high clamp load setup. It serves as a direct replacement for stock components, providing a significant upgrade for street or race applications. The kit includes the pressure plate, race disc, and necessary hardware for installation. Ideal for track days, spirited driving, or high-performance street use, this clutch assembly ensures reliable engagement and long-lasting performance. Proper fitment and compatibility make it an excellent choice for enthusiasts aiming to maximize their Prelude’s clutch capabilities.

Overview

ACT XT/Race Sprung 4 Pad Kit

HP4-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.9
  • Torque Capacity (ft/lbs.): 410
  • Torque Capacity Over OE: 1.4
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1990-1991 Honda Prelude

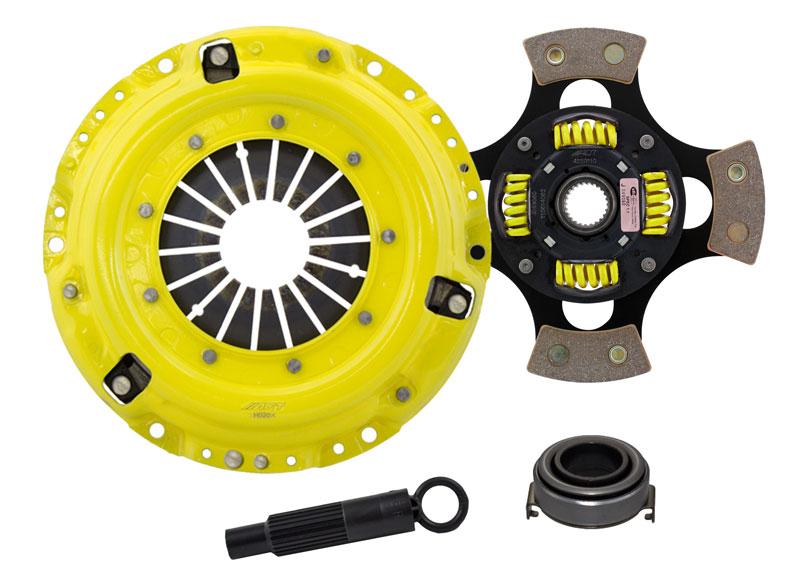

What's In The Box?

  • Clutch Friction Disc (4220110)
  • Clutch Alignment Tool (AT58)
  • Clutch Pressure Plate (H020X)
  • Clutch Release Bearing (RB817)

References

Warranty

  • Manufacturer 1 Year Warranty
