ACT Extreme Race Sprung 4 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-XTG4)

NA1-XTG4

Out of stock

$542.00 USD
$669.00 USD $542.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for Nissan Stanza (90-92) is a high-performance clutch system designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit delivers increased clamp load, reduced deflection, and enhanced durability to withstand aggressive driving and racing applications. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The inclusion of a 4-pad spring-centered race disc provides optimal damping and consistent engagement, making it suitable for high-stress environments. Constructed with precision cover stampings, the clutch components offer superior rigidity and reliability, ensuring consistent power transfer and reduced wear over time.

This clutch kit is designed to fit Nissan Stanza models from 1990 to 1992, specifically tailored for vehicles with compatible engine configurations. It serves as a direct replacement or upgrade for stock clutch systems, ideal for track use, spirited street driving, or racing scenarios. The kit includes all necessary components for installation, providing a comprehensive solution for performance enthusiasts seeking increased holding capacity and durability. Suitable for drivers seeking a reliable, high-performance clutch, this ACT kit enhances driving confidence and clutch life under demanding conditions.

Overview

ACT XT/Race Sprung 4 Pad Kit

NA1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.7
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 1.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1992 Nissan Stanza

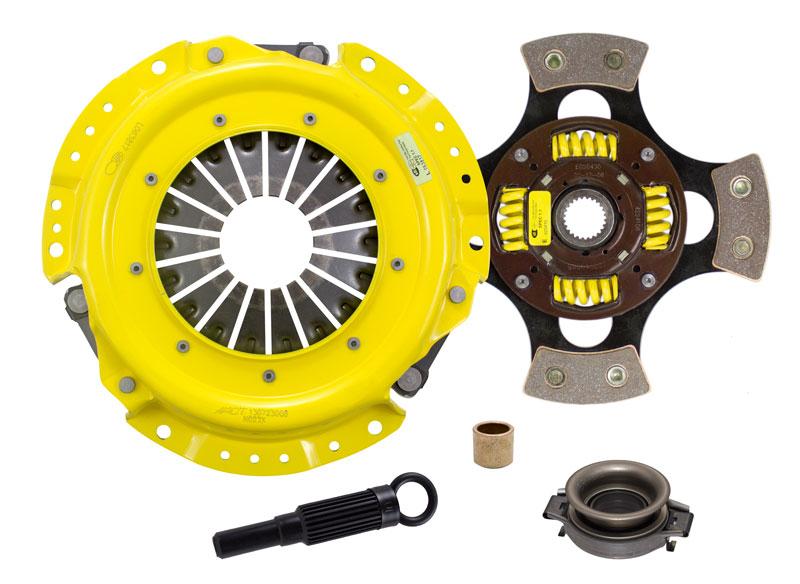

What's In The Box?

  • Clutch Friction Disc (4224106)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB816)

References

Warranty

  • Manufacturer 1 Year Warranty
