ACT XT/Race Sprung 4 Pad Clutch Kit | Nissan 300ZX (90-96) (NX6-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Nissan 300ZX (90-96) (NX6-XTG4)

NX6-XTG4

Out of stock

$778.00 USD
$778.00 USD $778.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit for the Nissan 300ZX (1990-1996) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The inclusion of a four-pad spring-centered race disc provides optimal damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components deliver enhanced rigidity and reliability, ensuring maximum power transfer and longevity.

This clutch kit is specifically engineered for 1990-1996 Nissan 300ZX models, compatible with various engine configurations within this chassis. It serves as a direct replacement or upgrade for stock clutch systems, offering improved holding capacity and responsiveness. The kit is ideal for track days, spirited street driving, or competitive racing, where high clamp loads and durability are essential. Installation involves standard bolt-on procedures, and the kit typically includes the pressure plate, clutch disc, and necessary hardware. Designed to meet the demands of performance enthusiasts, this clutch kit provides a reliable, high-quality upgrade for the Nissan 300ZX platform.

Overview

ACT XT/Race Sprung 4 Pad Kit

NX6-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 18.6
  • Torque Capacity (ft/lbs.): 630
  • Torque Capacity Over OE: 1.23
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1996 Nissan 300ZX

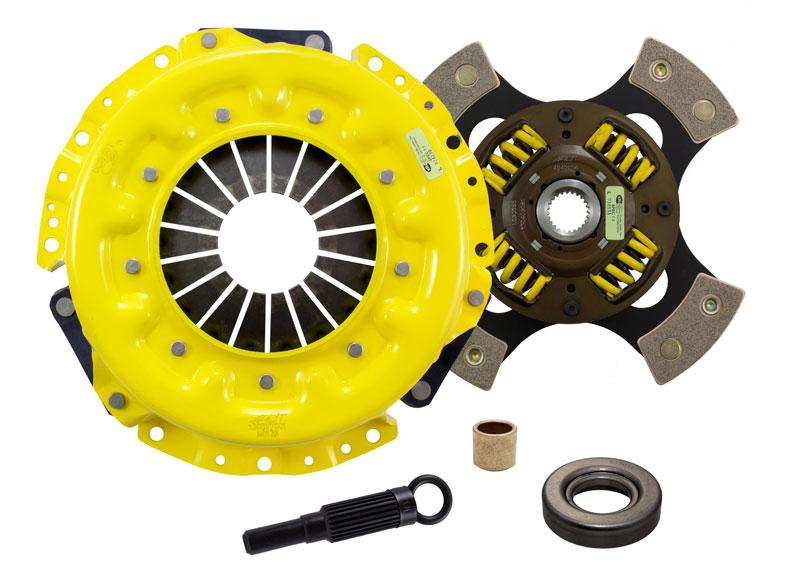

What's In The Box?

  • Clutch Pressure Plate (N013X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB810)
  • Clutch Friction Disc (4240206)
  • Clutch Alignment Tool (AT01)

References

Warranty

  • Manufacturer 1 Year Warranty
