ACT XT/Race Sprung 4 Pad Clutch Kit | Mazda Miata (90-05) (ZM2-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Mazda Miata (90-05) (ZM2-XTG4)

ZM2-XTG4

In stock

$622.00 USD
$768.00 USD $622.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit ZM2-XTG4 is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate with an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch longevity. The kit includes a four-pad spring-centered race disc with spring-center construction to provide optimal damping and stability during aggressive driving. All components undergo a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The precision cover stampings contribute to the rigidity and reliability of the clutch assembly, making it suitable for high-stress applications. This kit is engineered to deliver maximum grip, improved heat resistance, and long-lasting performance for serious enthusiasts.

Designed specifically for Mazda Miata models from 1990 to 2005, this clutch kit is a direct replacement upgrade for stock components. It is ideal for track use, spirited driving, or any application requiring increased clamping force and durability. The kit is compatible with stock flywheels and requires standard installation procedures, making it suitable for experienced DIY enthusiasts or professional installation. No additional components are necessary for installation, and the kit provides all essential parts for a complete upgrade. Whether for racing or high-performance street driving, this clutch kit enhances power transfer and pedal feel, ensuring reliable operation under demanding conditions.

Overview

ACT XT/Race Sprung 4 Pad Kit

ZM2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.9
  • Torque Capacity (ft/lbs.): 405
  • Torque Capacity Over OE: 1.26
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1990-2005 Mazda Miata

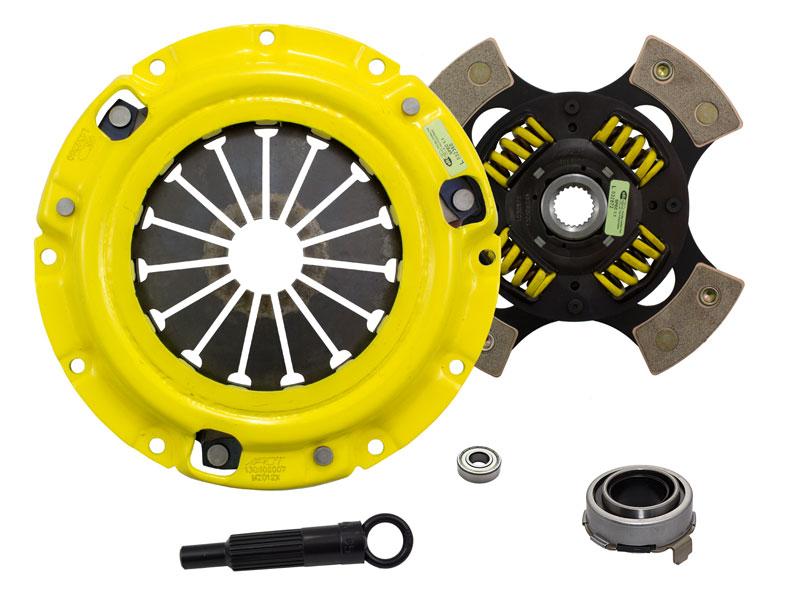

What's In The Box?

  • Clutch Friction Disc (4224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ012X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB813)

References

Warranty

  • Manufacturer 1 Year Warranty
