ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Corolla XT/Race (91-92) (TL3-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Corolla XT/Race (91-92) (TL3-XTG4)

TL3-XTG4

In stock

$683.00 USD
$683.00 USD $683.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Toyota Corolla XT/Race (91-92) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit provides increased clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 4-pad spring-centered race disc employs a spring-center construction that effectively damps torsional vibrations, delivering smooth engagement and reliable power transfer. Constructed with precision cover stampings, the clutch components offer superior rigidity and consistency, making it suitable for high-performance applications.

This clutch kit is specifically engineered for 1991-1992 Toyota Corolla XT/Race models, providing a direct upgrade for stock components. It is ideal for track use, aggressive street driving, or racing scenarios where maximum clamping force and durability are required. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Designed to withstand high heat and stress, this clutch assembly enhances vehicle performance and reliability in demanding environments. Proper fitment and compatibility with the specified model years make it a trusted choice for enthusiasts seeking a robust, race-ready clutch solution.

Overview

ACT XT/Race Sprung 4 Pad Kit

TL3-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 10.8
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9

Applications

  • 1991-1992 Toyota Corolla

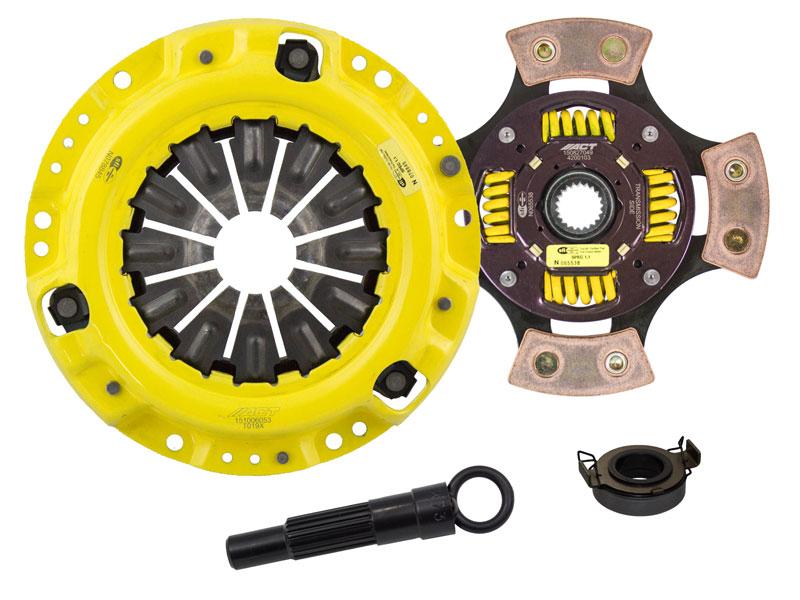

What's In The Box?

  • Clutch Friction Disc (4200103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
