ACT XT/Race Sprung 4 Pad Clutch Kit | Toyota MR2 (91-95) (TM1-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Toyota MR2 (91-95) (TM1-XTG4)

TM1-XTG4

Out of stock

$660.00 USD
$815.00 USD $660.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit TM1-XTG4 is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The kit includes a four-pad spring-centered race disc with spring-center construction, ensuring proper damping and engagement. All components undergo a four-stage heat-treating process, providing exceptional durability and heat resistance. Precision cover stampings contribute to the rigidity and consistency of the assembly, making it suitable for aggressive driving and racing applications. This clutch kit is engineered to deliver maximum performance, reliable engagement, and long-lasting operation under high-stress conditions.

Designed specifically for the Toyota MR2 from 1991 to 1995, this clutch kit is a direct replacement upgrade for stock components. It is ideal for track use, high-performance street driving, or any application requiring increased clamping force and durability. The kit is a bolt-on installation, compatible with the stock flywheel and transmission setup. It includes all necessary components for a complete clutch replacement, ensuring optimal fitment and performance. Suitable for enthusiasts seeking a reliable, high-capacity clutch solution, this ACT kit enhances power transfer and pedal feel while maintaining drivability and longevity.

Overview

ACT XT/Race Sprung 4 Pad Kit

TM1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.3
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1991-1995 Toyota MR2

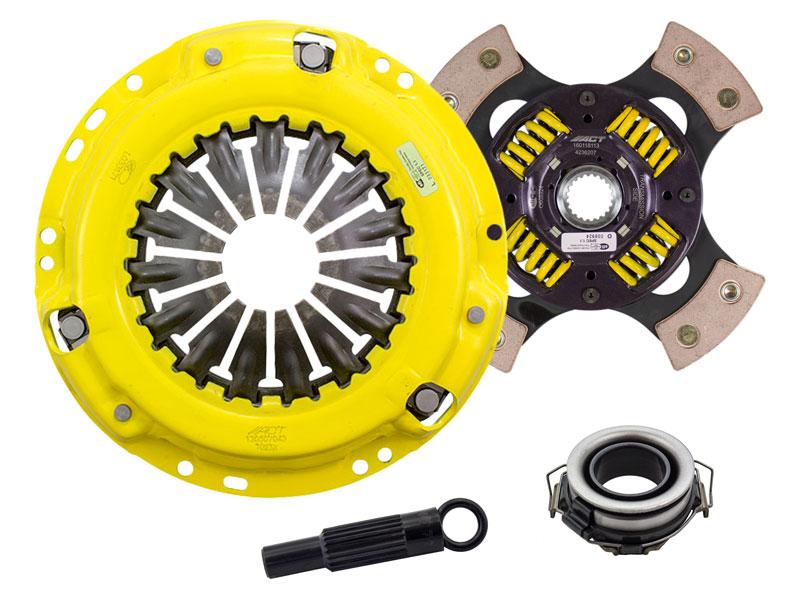

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT72)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
