ACT Extreme Race Sprung 4 Pad Clutch Kit | Acura Integra (92-93) (AI3-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Acura Integra (92-93) (AI3-XTG4)

AI3-XTG4

In stock

$612.00 USD
$755.00 USD $612.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Acura Integra (92-93) is a high-performance clutch system designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The kit includes a four-pad spring-centered race disc with a spring-center construction that effectively damps torsional vibrations, providing smooth engagement and enhanced control. Built with precision cover stampings, this clutch assembly offers rigidity and consistency, making it ideal for racing or aggressive street driving.

This clutch kit is specifically engineered for 1992-1993 Acura Integra models, compatible with various engine configurations within this chassis. It serves as a direct upgrade for stock clutch components, delivering increased holding capacity and improved heat resistance for high-performance applications. The assembly is a bolt-on installation, requiring no modifications for proper fitment. Suitable for track use, spirited street driving, or any scenario demanding maximum clamping force, this ACT clutch kit ensures reliable power transfer and longevity. The kit provides all necessary components for a complete upgrade, making it a preferred choice for enthusiasts seeking durability and high-level performance.

Overview

ACT XT/Race Sprung 4 Pad Kit

AI3-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Torque Capacity (ft/lbs.): 410
  • Torque Capacity Over OE: 1.2
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 12.7

Applications

  • 1992-1993 Acura Integra

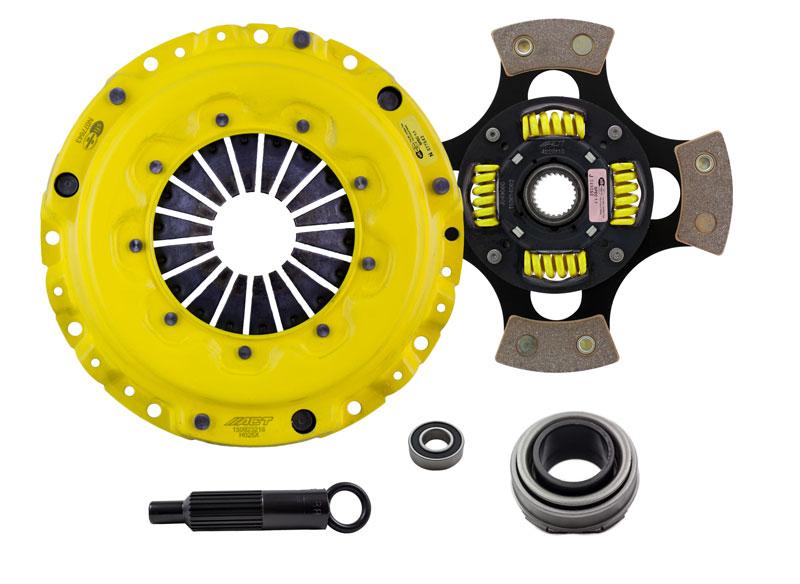

What's In The Box?

  • Clutch Friction Disc (4220110)
  • Clutch Alignment Tool (AT88)
  • Clutch Pressure Plate (H025X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
