• ACT Extreme Race Sprung 4 Pad Clutch Kit | Lexus IS300 (02-05) (TS5-XTG4)
1 1

ACT Extreme Race Sprung 4 Pad Clutch Kit | Lexus IS300 (02-05) (TS5-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Lexus IS300 (02-05) (TS5-XTG4)

TS5-XTG4

Out of stock

$637.00 USD
$786.00 USD $637.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Lexus IS300 (02-05) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced durability, making it suitable for aggressive street and race applications. The pressure plate employs an exclusive diaphragm design that undergoes a four-stage heat-treating process, ensuring maximum performance and longevity. The 4-pad spring-centered race disc is engineered for optimal damping and consistent engagement, delivering reliable power transfer under high-stress conditions. Constructed with precision stampings and robust materials, this clutch kit offers superior rigidity and stability for spirited driving.

Designed to fit 2002-2005 Lexus IS300 models, this clutch kit is a direct replacement for stock components, providing a significant upgrade in holding capacity and performance. It is ideal for track days, high-performance street use, or any application requiring increased clamping force and durability. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with stock or modified engines, this clutch assembly enhances driving confidence and clutch life during intense driving sessions. Proper installation and break-in are recommended to maximize performance and longevity.

Overview

ACT XT/Race Sprung 4 Pad Kit

TS5-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with aftermarket single-mass flywheel (not included).
  • Product Weight (lbs.): 16.8
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2002-2005 Lexus IS300

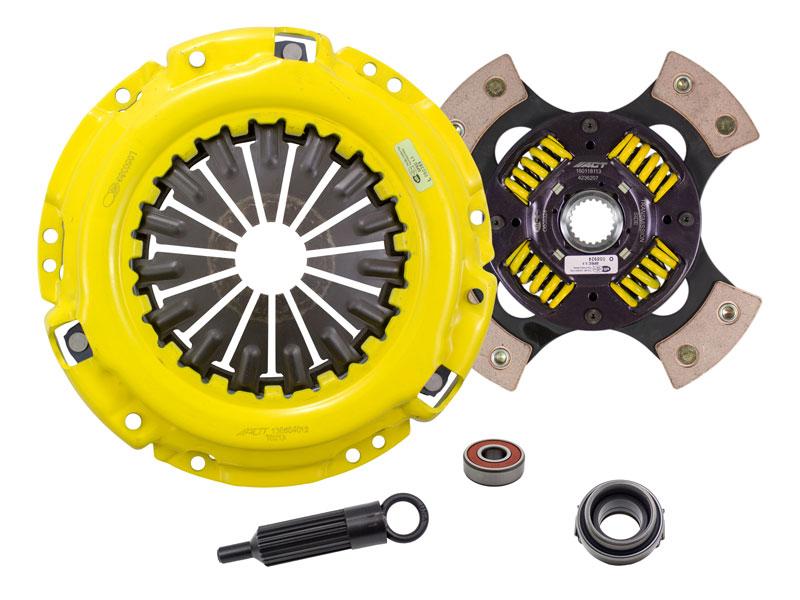

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB443)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
