ACT Extreme Race Sprung 4 Pad Clutch Kit | Mitsubishi Lancer (02-06) (MB8-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Mitsubishi Lancer (02-06) (MB8-XTG4)

MB8-XTG4

In stock

$609.00 USD
$609.00 USD $609.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for Mitsubishi Lancer (2002-2006) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit provides increased clamp load, reduced deflection, and extended clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The inclusion of a four-pad spring-centered race disc enhances engagement and power transfer, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the components deliver rigidity and reliability, ensuring optimal clutch operation during high-performance use.

This clutch kit is specifically engineered for 2002-2006 Mitsubishi Lancer models, compatible with various engine configurations within this chassis. It serves as a direct replacement for stock clutch components, offering improved holding capacity and responsiveness for street or track use. The kit includes all necessary components for installation, such as the pressure plate, clutch disc, and release bearing. Designed for bolt-on installation, it provides a straightforward upgrade for enthusiasts seeking enhanced clutch performance and durability. Ideal for racing, spirited driving, or demanding daily use, this ACT clutch kit ensures reliable power transfer and long-lasting performance.

Overview

ACT XT/Race Sprung 4 Pad Kit

MB8-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.5
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.49
  • Pressure Plate Type: Xtreme
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 2002-2006 Mitsubishi Lancer

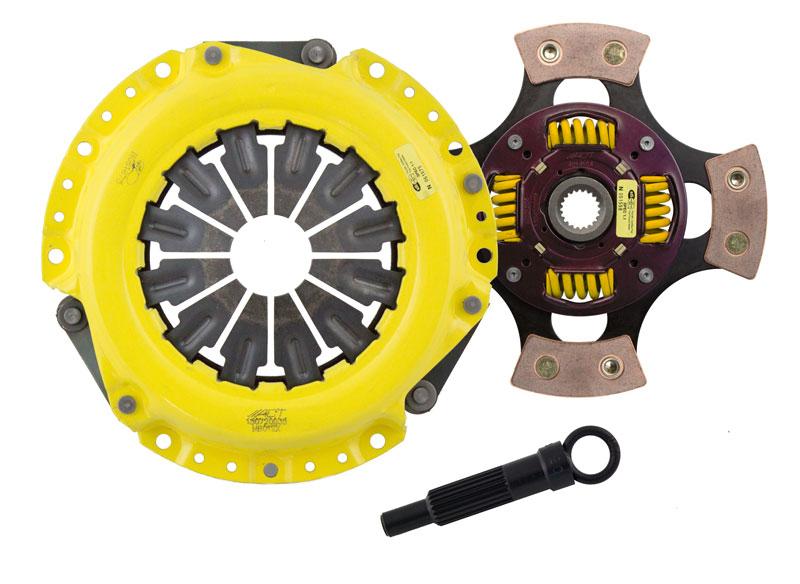

What's In The Box?

  • Clutch Friction Disc (4214104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (MB012X)

References

Warranty

  • Manufacturer 1 Year Warranty
