ACT Extreme Race Sprung 4 Pad Clutch Kit | Subaru BRZ / Toyota 86 / Scion FR-S (13-20) (SB7-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Subaru BRZ / Toyota 86 / Scion FR-S (13-20) (SB7-XTG4)

SB7-XTG4

Out of stock

$945.00 USD
$1,167.00 USD $945.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for Subaru BRZ, Toyota 86, and Scion FR-S (2013-2020) is a high-performance clutch system designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit provides increased clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The 4-pad spring-centered race disc is engineered to deliver optimal engagement and damping, making it suitable for aggressive driving and track applications. Constructed with precision cover stampings, the clutch components offer rigidity and reliability, ensuring maximum power transfer and minimal slip during high-stress situations.

This clutch kit is a direct replacement for compatible Subaru BRZ, Toyota 86, and Scion FR-S models within the 2013-2020 range. It is designed for street and track use, providing a robust upgrade for drivers seeking improved performance and durability. Installation involves bolt-on replacement of the stock clutch components, with all necessary parts included in the kit. The system is ideal for enthusiasts who demand high clamp loads and reliable engagement during spirited driving or racing events. Proper fitment and performance depend on correct installation and vehicle specifications, making this kit a suitable upgrade for performance-oriented applications on these specific models.

Overview

ACT XT/Race Sprung 4 Pad Kit

SB7-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit).
  • Product Weight (lbs.): 26.1
  • Torque Capacity (ft/lbs.): 449
  • Torque Capacity Over OE: 1.66
  • Flywheel Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 2017-2020 Toyota 86
  • 2013-2016 Scion FR-S
  • 2013-2020 Subaru BRZ

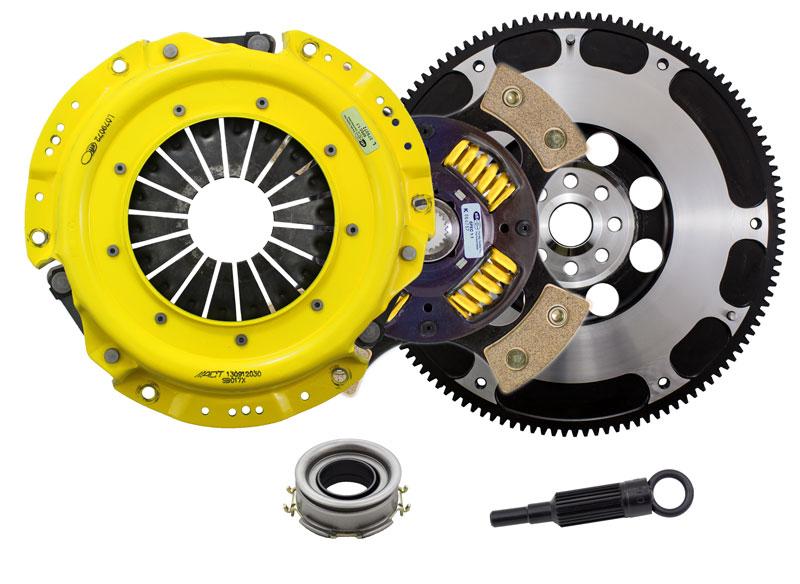

What's In The Box?

  • Clutch Friction Disc (4224218-1)
  • Clutch Flywheel (600705)
  • Clutch Alignment Tool (AT90)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB004)
  • Clutch Pressure Plate (SB017X)

References

Warranty

  • Manufacturer 1 Year Warranty
