• ACT XT/Race Sprung 4 Pad Clutch Kit | Acura CL (1997) (HA3-XTG4)
1 1

ACT XT/Race Sprung 4 Pad Clutch Kit | Acura CL (1997) (HA3-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Acura CL (1997) (HA3-XTG4)

HA3-XTG4

In stock

$580.00 USD
$716.00 USD $580.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit for the Acura CL (1997) is a high-performance clutch system designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The kit includes a four-pad spring-centered race disc that provides optimal damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the components deliver rigidity and reliability, ensuring maximum power transfer and clutch stability.

This clutch kit is specifically engineered for 1997 Acura CL models, offering a direct replacement for stock components. It is ideal for street and track use, where high clamp loads and durability are essential. The installation is designed to be straightforward for experienced technicians, with all necessary components included. The kit provides a reliable upgrade for drivers seeking improved performance and longevity from their clutch system, especially in high-stress driving scenarios. Compatibility is limited to the specified year and model, ensuring optimal fitment and function.

Overview

ACT XT/Race Sprung 4 Pad Kit

HA3-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.1
  • Torque Capacity (ft/lbs.): 490
  • Torque Capacity Over OE: 1.5
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1990-2002 Honda Accord
  • 1997-1999 Acura CL
  • 1992-2001 Honda Prelude

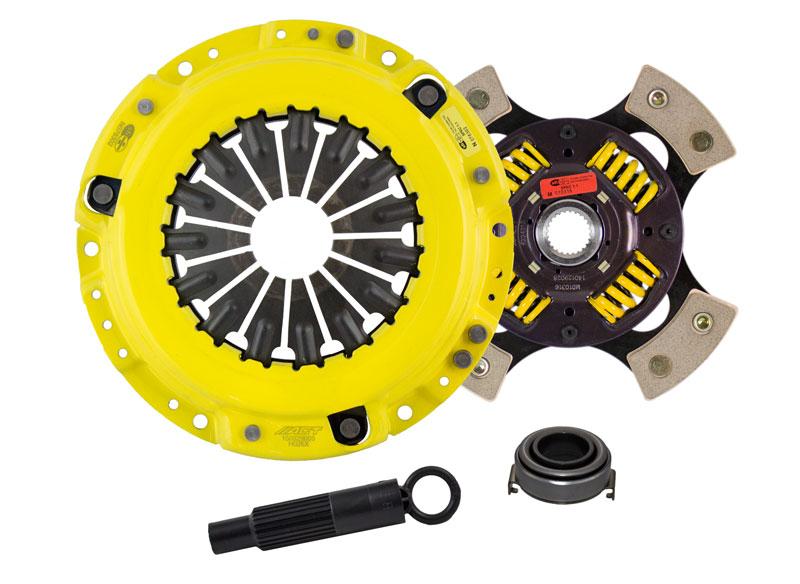

What's In The Box?

  • Clutch Friction Disc (4224210)
  • Clutch Alignment Tool (AT58)
  • Clutch Pressure Plate (H026X)
  • Clutch Release Bearing (RB817)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
