ACT Extreme Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC4-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC4-XTG4)

HC4-XTG4

In stock

$545.00 USD
$673.00 USD $545.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit HC4-XTG4 is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit delivers increased clamp load, reduced deflection, and enhanced durability for racing and aggressive street use. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The 4-pad spring-centered race disc provides optimal damping and consistent engagement, making it suitable for high-stress applications. Constructed with precision cover stampings, the clutch components offer rigidity and stability under extreme loads, ensuring reliable power transfer and improved clutch life.

This clutch kit is compatible with multiple vehicle fitments, including various makes and models requiring a sprung, four-pad clutch setup. It is ideal for track days, racing, or spirited driving where high clamp loads and durability are essential. The kit is a direct replacement for stock clutch assemblies, providing a bolt-on upgrade without modifications. Installation typically involves standard clutch replacement procedures, and the kit includes all necessary components for a complete upgrade. Designed for high-performance applications, this clutch kit enhances driving response and power handling for serious enthusiasts and racers alike.

Overview

ACT XT/Race Sprung 4 Pad Kit

HC4-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.6
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic
  • 1989-1991 Honda CRX

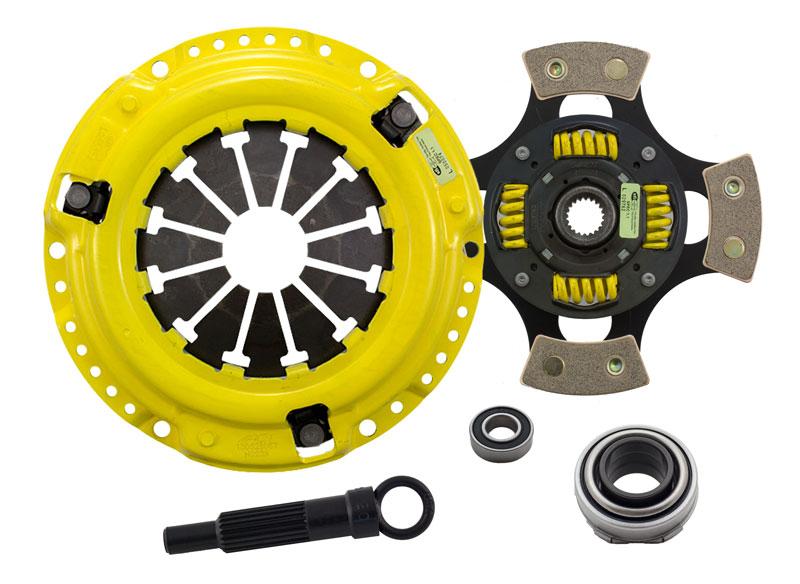

What's In The Box?

  • Clutch Friction Disc (4212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
