ACT XT/Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC6-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC6-XTG4)

HC6-XTG4

Out of stock

$545.00 USD
$673.00 USD $545.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit HC6-XTG4 is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate with an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch durability. The kit includes a four-pad, spring-centered race disc constructed with spring-center technology to ensure proper engagement and damping. All components undergo a four-stage heat-treating process, providing exceptional strength and heat resistance. Precision cover stampings contribute to the rigidity and consistency of the assembly, making it ideal for aggressive street and race applications. This clutch kit delivers reliable power transfer, improved holding capacity, and increased lifespan for high-stress driving scenarios.

Designed for multiple fitments, the ACT XT/Race Sprung 4 Pad Clutch Kit HC6-XTG4 is suitable for various vehicles requiring a high-performance upgrade. It is compatible with models that demand a robust clutch solution capable of handling increased torque and horsepower. This kit is a direct replacement for stock clutch components, offering a bolt-on installation process. It is well-suited for track use, spirited street driving, or any application where maximum clutch performance and longevity are desired. The kit typically includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade for compatible vehicles.

Overview

ACT XT/Race Sprung 4 Pad Kit

HC6-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 10.6
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda CRX
  • 1988-1988 Honda Civic

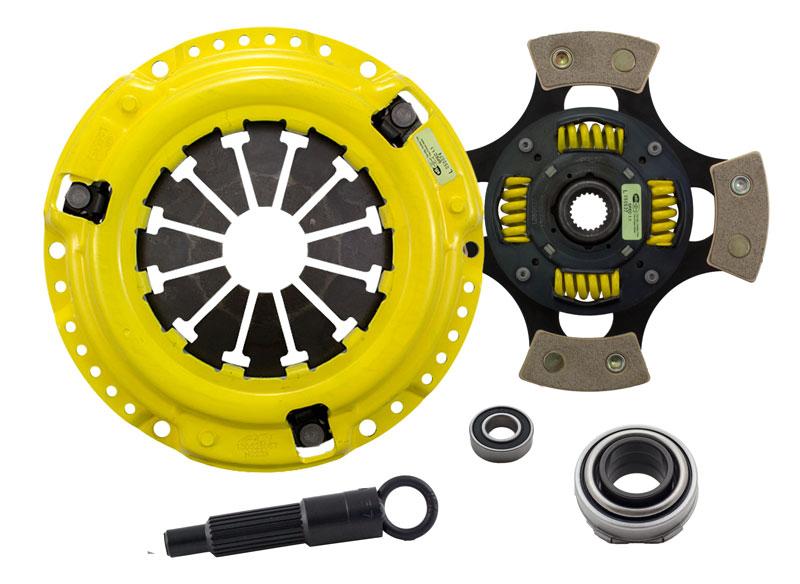

What's In The Box?

  • Clutch Friction Disc (4212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
