ACT Extreme Race Sprung 4 Pad Clutch Kit | Hyundai Elantra (93) (MB3-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Hyundai Elantra (93) (MB3-XTG4)

MB3-XTG4

In stock

$646.00 USD
$646.00 USD $646.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Hyundai Elantra (93) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The inclusion of a precision cover stamping enhances rigidity and stability, while the 4-pad spring-centered race disc provides optimal damping and engagement characteristics. Overall, this clutch kit delivers superior holding capacity and reliability for aggressive street and race applications.

Designed specifically for the 1993 Hyundai Elantra, this clutch kit is a direct replacement for stock components, offering improved performance for high-stress driving scenarios. It is suitable for use in street, track, or competition environments where maximum durability and engagement are required. The kit is a bolt-on upgrade that maintains factory fitment and ease of installation. It includes all necessary components for a complete clutch replacement, ensuring compatibility with the vehicle’s transmission system. Ideal for enthusiasts seeking increased clamping force and longevity, this ACT clutch kit enhances overall drivetrain performance for the Elantra.

Overview

ACT XT/Race Sprung 4 Pad Kit

MB3-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.49
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 11

Applications

  • 1989-1994 Dodge Colt
  • 1990-1994 Plymouth Laser
  • 1990-1994 Mitsubishi Eclipse
  • 1993-1995 Hyundai Elantra
  • 1993-1995 Hyundai Scoupe
  • 1992-1994 Hyundai Sonata
  • 1992-1994 Mitsubishi Expo LRV
  • 1989-1993 Mitsubishi Galant
  • 1990-1994 Eagle Talon
  • 1992-1996 Eagle Summit
  • 1988-2002 Mitsubishi Mirage
  • 1992-1994 Plymouth Colt

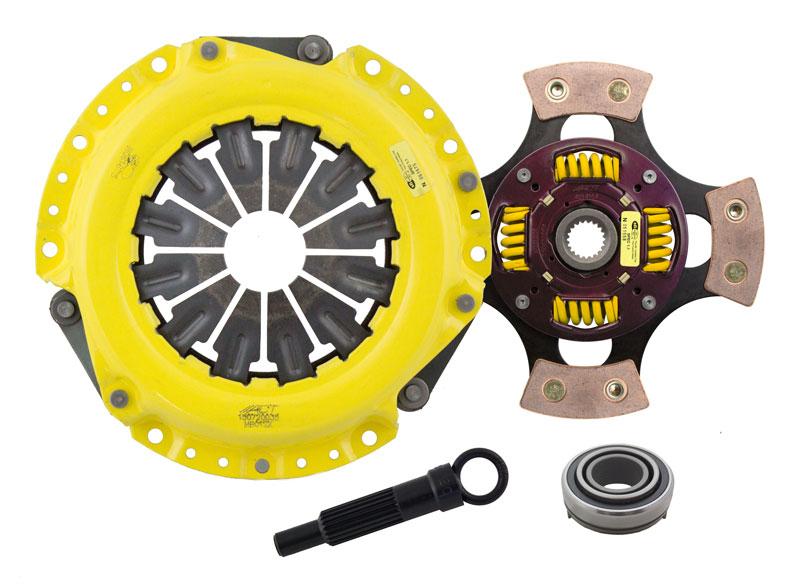

What's In The Box?

  • Clutch Friction Disc (4214104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (MB012X)
  • Clutch Release Bearing (RB210)

References

Warranty

  • Manufacturer 1 Year Warranty
