ACT XT/Race Sprung 4 Pad Clutch Kit | Chrysler Conquest (1987) (MS1-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Chrysler Conquest (1987) (MS1-XTG4)

MS1-XTG4

In stock

$632.00 USD
$780.00 USD $632.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit for the Chrysler Conquest (1987) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The 4-pad spring-centered race disc employs spring-center construction to provide optimal damping and engagement, making it suitable for high-stress applications. Built with precision cover stampings, the clutch components deliver rigidity and reliability, ideal for racing or aggressive street driving.

This clutch kit is specifically engineered for the 1987 Chrysler Conquest equipped with suitable engine configurations. It serves as a direct replacement or upgrade for stock clutch systems, offering increased holding capacity and improved pedal feel. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Designed for performance enthusiasts, this clutch assembly is suitable for track use, spirited street driving, or any application requiring maximum clamping force and durability. Proper installation and compatibility with the vehicle's specifications are recommended to achieve optimal results.

Overview

ACT XT/Race Sprung 4 Pad Kit

MS1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 16
  • Torque Capacity (ft/lbs.): 565
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1989 Chrysler Conquest
  • 1987-1989 Mitsubishi Starion

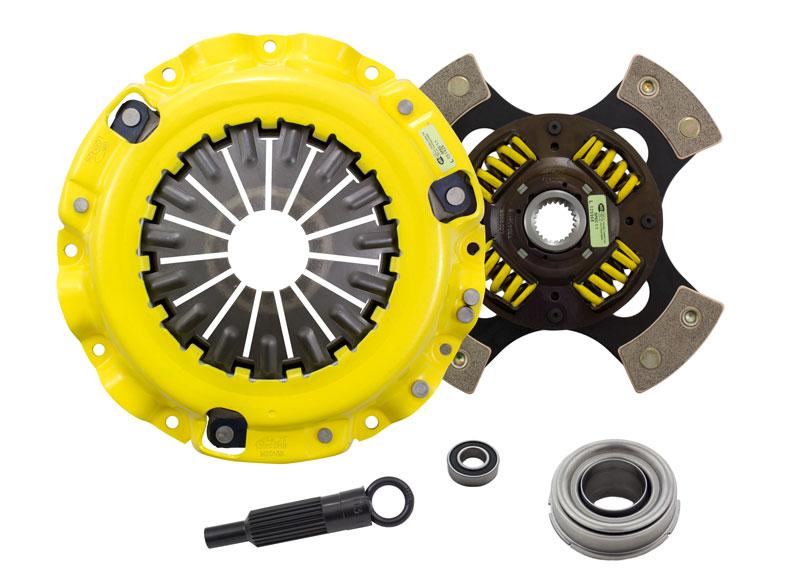

What's In The Box?

  • Clutch Friction Disc (4240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB422)

References

Warranty

  • Manufacturer 1 Year Warranty
