• ACT Extreme Race Sprung 4 Pad Clutch Kit | Infiniti I30 (96) (NM1-XTG4)
1 1

ACT Extreme Race Sprung 4 Pad Clutch Kit | Infiniti I30 (96) (NM1-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Infiniti I30 (96) (NM1-XTG4)

NM1-XTG4

In stock

$588.00 USD
$726.00 USD $588.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Infiniti I30 (96) is a high-performance clutch system designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The kit includes a four-pad spring-centered race disc with spring-center construction, providing optimal damping and engagement characteristics. Built with precision cover stampings, this clutch kit offers enhanced rigidity and reliability, making it suitable for aggressive street and race applications.

Designed specifically for the 1996 Infiniti I30, this clutch kit is a direct replacement upgrade for stock components. It is engineered to handle high horsepower and torque levels, making it ideal for track days, spirited driving, or heavy-duty use. The assembly is a bolt-on installation, requiring no modifications for proper fitment. The kit includes all necessary components for a complete upgrade, ensuring a seamless installation process. Suitable for use in performance-oriented street driving or racing environments, this clutch kit delivers increased holding capacity, improved pedal feel, and long-lasting durability.

Overview

ACT XT/Race Sprung 4 Pad Kit

NM1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 15.7
  • Torque Capacity (ft/lbs.): 565
  • Torque Capacity Over OE: 1.27
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1985-2001 Nissan Maxima
  • 1996-1999 Infiniti I30

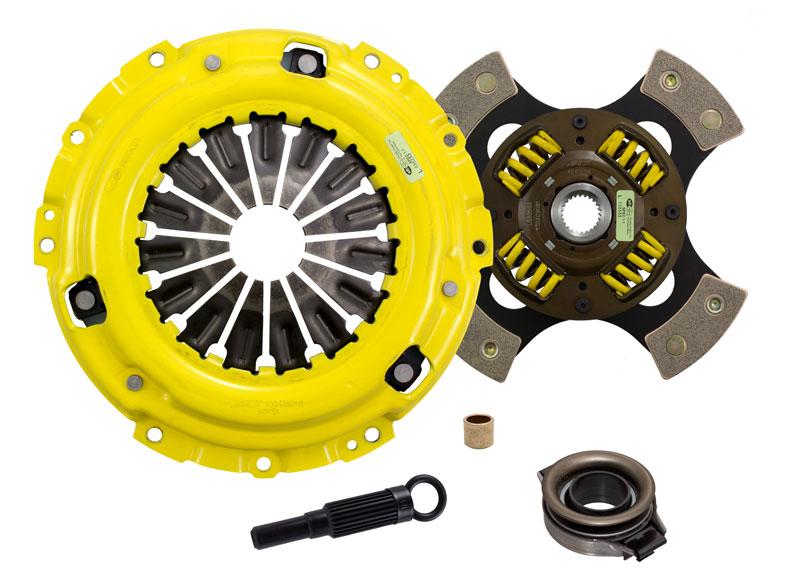

What's In The Box?

  • Clutch Friction Disc (4240206)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N015X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB809)

References

Warranty

  • Manufacturer 1 Year Warranty
