ACT Extreme Race Sprung 4 Pad Clutch Kit | Nissan 240SX (1989) (NX1-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Nissan 240SX (1989) (NX1-XTG4)

NX1-XTG4

Out of stock

$539.00 USD
$665.00 USD $539.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Nissan 240SX (1989) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit delivers increased clamp load, reduced deflection, and enhanced durability to withstand aggressive use. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The inclusion of a four-pad spring-centered race disc provides optimal damping and consistent engagement, making it suitable for high-stress applications. Constructed with precision cover stampings, the clutch components offer superior rigidity and stability, ensuring reliable power transfer during intense driving.

This clutch kit is specifically engineered for the 1989 Nissan 240SX, compatible with models equipped with the NX1-XTG4 part number. It is intended for street, track, or race use, providing a direct bolt-on upgrade for improved performance and durability. The kit includes all necessary components for installation, such as the pressure plate and race disc, ensuring a straightforward replacement process. Designed to handle increased horsepower and torque, this clutch is ideal for enthusiasts seeking a reliable, high-performance upgrade for spirited driving or competitive racing. Proper fitment and application are confirmed for this specific vehicle, making it a suitable choice for demanding drivers.

Overview

ACT XT/Race Sprung 4 Pad Kit

NX1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.4
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 1.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1975-1978 Nissan 280Z
  • 1975-1979 Nissan 620
  • 1980-1983 Nissan 720
  • 1979-1983 Nissan 280ZX
  • 1981-1984 Nissan Maxima
  • 1990-1990 Nissan Axxess
  • 1980-1986 Nissan 720
  • 1989-1998 Nissan 240SX

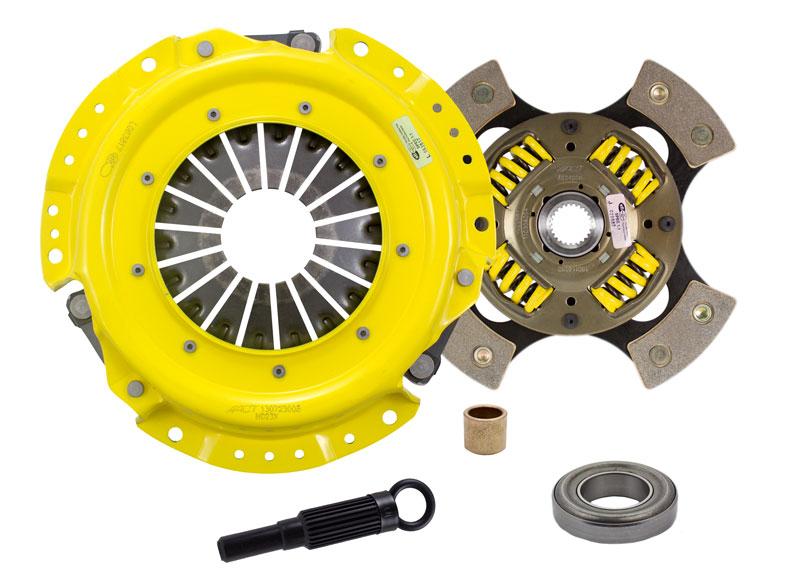

What's In The Box?

  • Clutch Friction Disc (4224206)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB016)

References

Warranty

  • Manufacturer 1 Year Warranty
