ACT Extreme Race Sprung 4 Pad Clutch Kit | Nissan 280ZX (81) (NX2-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Nissan 280ZX (81) (NX2-XTG4)

NX2-XTG4

Out of stock

$745.00 USD
$745.00 USD $745.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Nissan 280ZX (81) is a high-performance clutch system designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit delivers increased clamp load, reduced deflection, and enhanced durability, making it suitable for aggressive street and race applications. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The 4-pad spring-centered race disc provides optimal damping and engagement, contributing to consistent power transfer and improved pedal feel. Constructed with precision cover stampings, the clutch components offer rigidity and stability under high-stress conditions, making it a reliable upgrade for serious enthusiasts.

This clutch kit is specifically engineered for the Nissan 280ZX from 1981, providing a direct replacement for stock components. It is ideal for track use, high-performance street driving, or any application requiring increased clamping force and durability. The kit includes the pressure plate, race disc, and necessary hardware for installation, ensuring a straightforward upgrade process. Designed to handle increased horsepower and torque, this clutch system is compatible with the vehicle's original flywheel and transmission setup. Suitable for drivers seeking maximum performance and reliability, this ACT clutch kit enhances overall drivability and clutch life in demanding driving environments.

Overview

ACT XT/Race Sprung 4 Pad Kit

NX2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 18.5
  • Torque Capacity (ft/lbs.): 630
  • Torque Capacity Over OE: 1.23
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1979-1983 Nissan 280ZX
  • 1987-1987 Nissan Pathfinder
  • 1987-1988 Nissan 200SX
  • 1984-1989 Nissan 300ZX
  • 1995-1998 Nissan Pickup
  • 1986-1994 Nissan D21

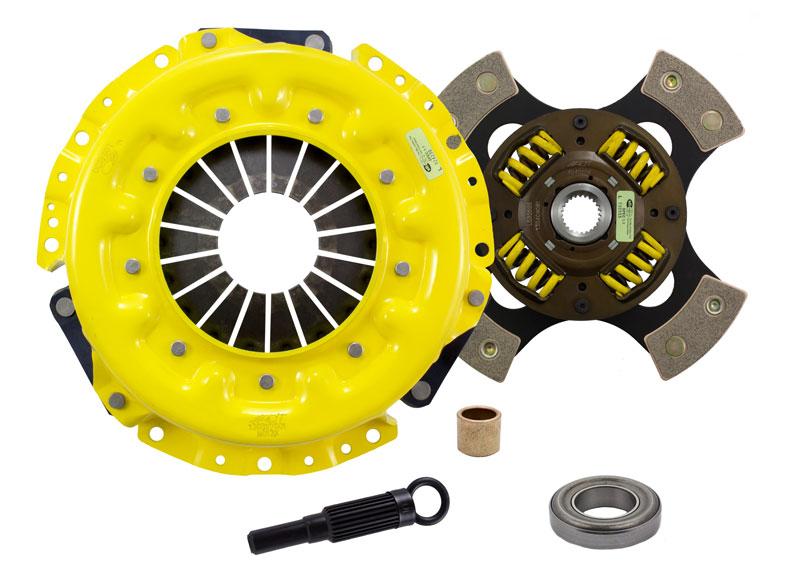

What's In The Box?

  • Clutch Friction Disc (4240206)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N013X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB016)

References

Warranty

  • Manufacturer 1 Year Warranty
