ACT Extreme Race Sprung 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-XTG4)

NX9-XTG4

In stock

$532.00 USD
$657.00 USD $532.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Nissan 200SX (96) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced durability for aggressive street and race applications. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The inclusion of a four-pad spring-centered race disc ensures proper damping and smooth engagement, making it suitable for high-stress environments. Constructed with precision cover stampings, the clutch offers rigidity and consistency, delivering reliable power transfer and improved pedal feel.

This clutch kit is specifically engineered for the 1996 Nissan 200SX equipped with the NX9-XTG4 model. It is intended as a direct replacement and upgrade for stock components, suitable for both street and track use. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Designed to handle increased horsepower and torque, this clutch assembly is ideal for performance enthusiasts seeking durability and high-performance engagement. It is compatible with vehicles used in spirited driving, racing, or demanding daily driving scenarios where maximum clutch performance is required.

Overview

ACT XT/Race Sprung 4 Pad Kit

NX9-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Torque Capacity Over OE: 1.36
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 18
  • Input Shaft Diameter (in.): 0.8125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 10.8
  • Torque Capacity (ft/lbs.): 410

Applications

  • 1991-2006 Nissan Sentra
  • 1991-1993 Nissan NX
  • 1991-2002 Infiniti G20
  • 1995-1998 Nissan 200SX

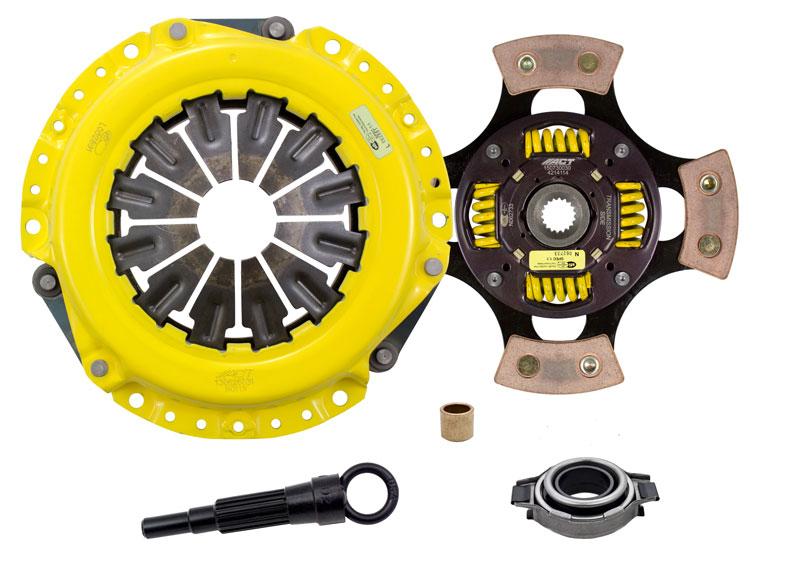

What's In The Box?

  • Clutch Friction Disc (4214114)
  • Clutch Alignment Tool (AT68)
  • Clutch Pressure Plate (N011X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB433)

References

Warranty

  • Manufacturer 1 Year Warranty
