ACT Extreme Race Sprung 4 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC1-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC1-XTG4)

TC1-XTG4

Out of stock

$578.00 USD
$713.00 USD $578.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the 1991 Geo Prizm XT is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The kit includes a four-pad spring-centered race disc constructed with spring-center technology to ensure proper damping and engagement. All components undergo a four-stage heat-treating process, providing exceptional durability and heat resistance. Precision cover stampings enhance rigidity and consistency, making this clutch kit suitable for aggressive street or race applications. Its robust construction delivers reliable power transfer and improved performance under high-stress conditions.

This clutch kit is specifically designed for the 1991 Geo Prizm XT with a TC1-XTG4 application. It is a direct replacement upgrade for stock clutch components, offering increased clamping force and heat capacity for track days or spirited driving. The kit is intended for use in vehicles subjected to high-performance demands, including racing or heavy-duty street use. Installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included. Compatible with the stock flywheel and transmission, this clutch kit provides a reliable upgrade for drivers seeking enhanced holding capacity and longevity in demanding environments.

Overview

ACT XT/Race Sprung 4 Pad Kit

TC1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 1.22
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Toyota Corolla
  • 1990-1991 Geo Prizm
  • 1990-1991 Toyota Celica
  • 1985-1989 Toyota MR2

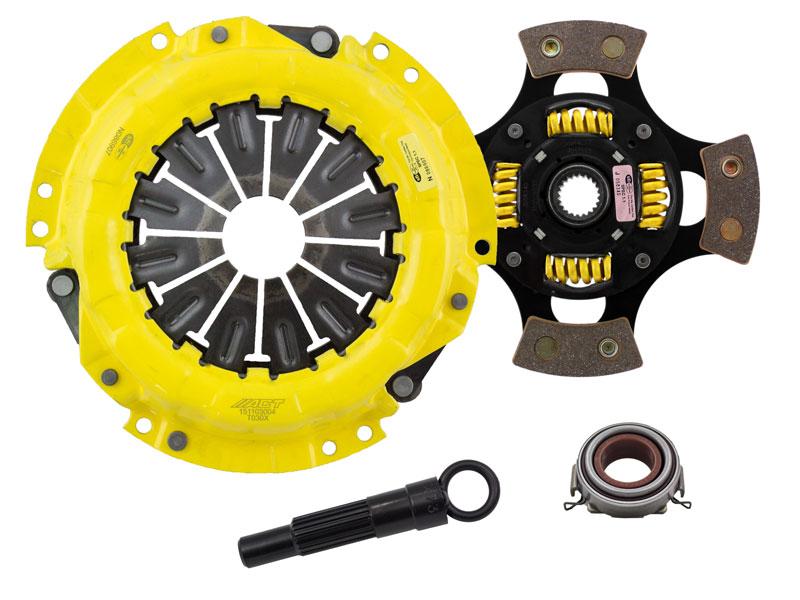

What's In The Box?

  • Clutch Friction Disc (4212103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB371)
  • Clutch Pressure Plate (T030X)

References

Warranty

  • Manufacturer 1 Year Warranty
