• ACT Extreme Race Sprung 4 Pad Clutch Kit | Geo Prizm 1991 (TC2-XTG4)
1 1

ACT Extreme Race Sprung 4 Pad Clutch Kit | Geo Prizm 1991 (TC2-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Geo Prizm 1991 (TC2-XTG4)

TC2-XTG4

In stock

$588.00 USD
$726.00 USD $588.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Geo Prizm 1991 (TC2-XTG4) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The clutch disc incorporates a four-pad spring-centered race design, which effectively damps torsional vibrations and enhances engagement stability. Built with precision cover stampings, the clutch assembly offers rigidity and uniform pressure distribution, making it suitable for high-power applications and aggressive driving.

Designed specifically for the 1991 Geo Prizm, this clutch kit is compatible with models equipped with compatible engine configurations. It serves as a direct replacement or upgrade for stock clutch components, providing improved holding capacity and longevity. The kit is ideal for track use, street performance, or any application requiring maximum clutch engagement and durability. Installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included for a complete upgrade. This clutch kit ensures reliable performance and consistent pedal feel during high-stress driving scenarios.

Overview

ACT XT/Race Sprung 4 Pad Kit

TC2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.9
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 1.22
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1992-2013 Toyota Corolla
  • 2003-2008 Pontiac Vibe
  • 2003-2014 Toyota Matrix
  • 1991-1997 Geo Prizm
  • 1991-2005 Toyota Celica
  • 2000-2005 Toyota MR2 Spyder

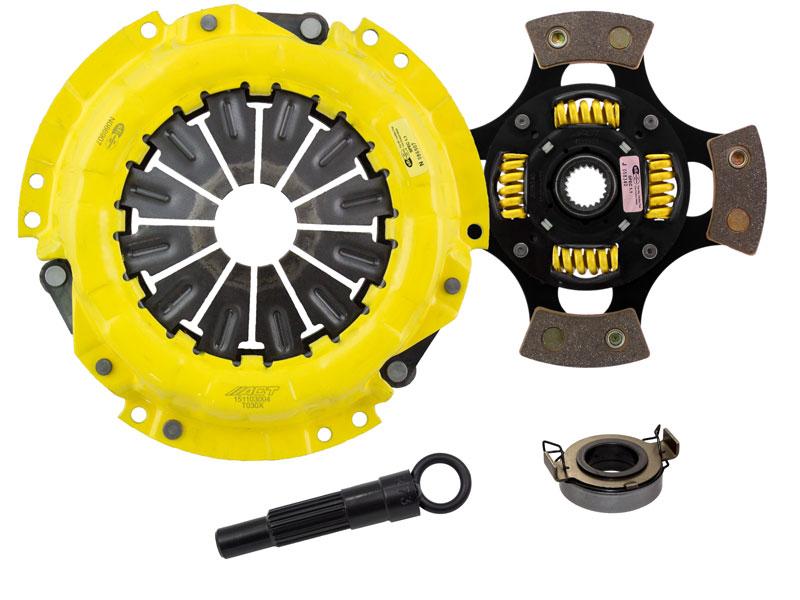

What's In The Box?

  • Clutch Friction Disc (4212103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T030X)

References

Warranty

  • Manufacturer 1 Year Warranty
