ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Camry (1988) (TC6-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Camry (1988) (TC6-XTG4)

TC6-XTG4

Out of stock

$771.00 USD
$771.00 USD $771.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Toyota Camry (1988) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The inclusion of a four-pad spring-centered race disc provides optimal damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components offer enhanced rigidity and reliability, ensuring consistent power transfer and longevity under high-stress conditions.

This clutch kit is specifically designed for the 1988 Toyota Camry, compatible with models equipped with the TC6 engine code. It is intended for street and race use, providing a direct bolt-on upgrade for improved performance and durability. The kit includes all necessary components for installation, ensuring a straightforward replacement process. Suitable for drivers seeking a high-performance clutch solution, this ACT Extreme Race Sprung 4 Pad Clutch Kit enhances torque capacity and pedal feel, making it ideal for spirited driving, track days, or competitive racing. Proper fitment and application are confirmed for the specified vehicle, ensuring optimal operation and reliability.

Overview

ACT XT/Race Sprung 4 Pad Kit

TC6-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.7
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 1.06
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2005-2006 Scion tC
  • 1988-2006 Toyota Camry
  • 2002-2006 Toyota Solara

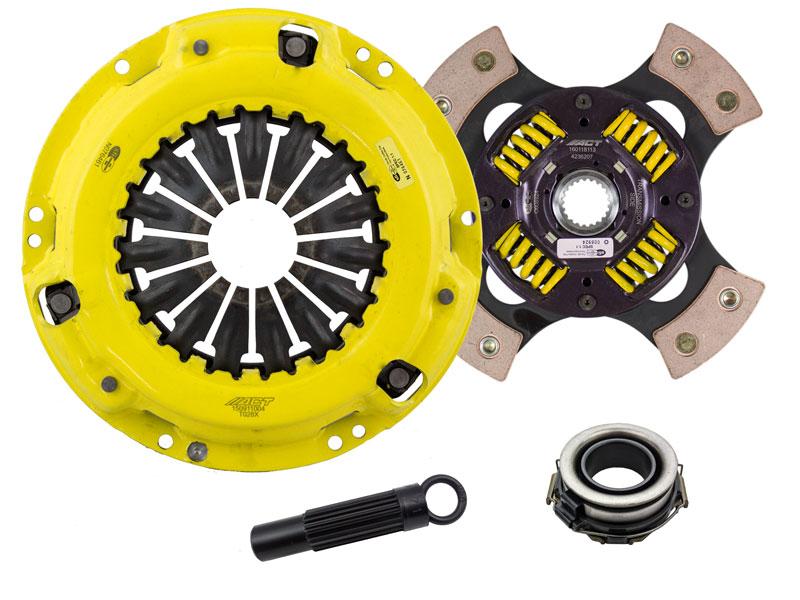

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB219)
  • Clutch Pressure Plate (T028X)

References

Warranty

  • Manufacturer 1 Year Warranty
