ACT Extreme Race Sprung 4 Pad Clutch Kit | Scion tC (2006) (TC7-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Scion tC (2006) (TC7-XTG4)

TC7-XTG4

Out of stock

$763.00 USD
$763.00 USD $763.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the 2006 Scion tC (model TC7-XTG4) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate with an exclusive diaphragm design that enhances clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a four-pad spring-centered race disc with spring-center construction, providing optimal damping and engagement characteristics. Built with precision cover stampings for rigidity, this clutch kit delivers superior holding capacity and reliability for aggressive street or track use.

Designed specifically for the 2006 Scion tC, this clutch kit is compatible with models equipped with standard transmissions. It is intended for drivers seeking increased performance and durability under high-stress conditions, such as racing or spirited driving. The assembly is a direct bolt-on replacement for the stock clutch, requiring no additional modifications for installation. The kit provides all necessary components for a complete upgrade, ensuring a secure fit and optimal operation. Ideal for track days, street performance, or heavy-duty applications, this clutch kit maximizes power transfer and pedal feel for enthusiastic driving.

Overview

ACT XT/Race Sprung 4 Pad Kit

TC7-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 14.9
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 1.06
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic

Applications

  • 2009-2013 Toyota Matrix
  • 2007-2008 Toyota Camry
  • 2009-2012 Toyota Corolla
  • 2006-2010 Scion tC
  • 2008-2015 Scion xB

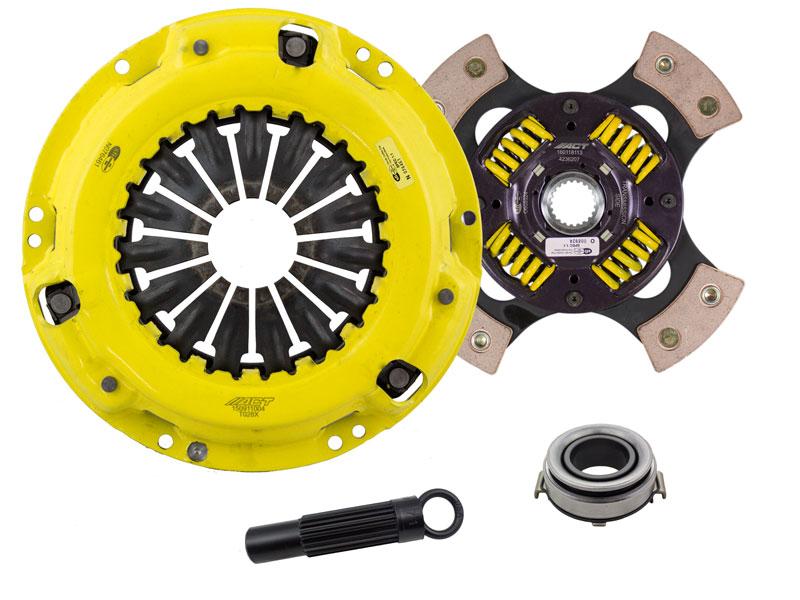

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB084)
  • Clutch Pressure Plate (T028X)

References

Warranty

  • Manufacturer 1 Year Warranty
