ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Camry (10) (TC8-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Camry (10) (TC8-XTG4)

TC8-XTG4

Out of stock

$691.00 USD
$691.00 USD $691.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Toyota Camry (10) is a high-performance clutch system designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The inclusion of a four-pad spring-centered race disc provides optimal damping and engagement, making it suitable for aggressive street and track use. Constructed with precision cover stampings, the clutch components deliver enhanced rigidity and reliability, ensuring maximum power transfer and longevity.

This clutch kit is specifically engineered for the 2010 Toyota Camry equipped with compatible engine configurations. It is a direct replacement upgrade for stock clutch systems, offering improved holding capacity and responsiveness for high-performance applications. The kit includes all necessary components for installation, such as the pressure plate, clutch disc, and release bearing. Designed for street, track, or spirited driving, this clutch system provides a reliable solution for drivers seeking increased performance and durability. Proper installation ensures optimal engagement and longevity, making it an ideal upgrade for enthusiasts and racers alike.

Overview

ACT XT/Race Sprung 4 Pad Kit

TC8-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.2
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 1.06
  • Pressure Plate Type: Xtreme
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 2010-2011 Toyota Camry
  • 2011-2016 Scion tC

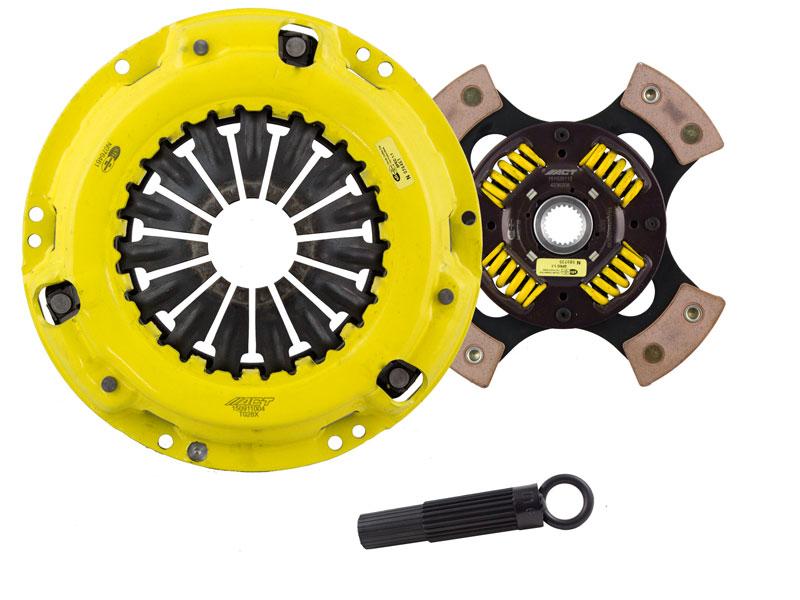

What's In The Box?

  • Clutch Friction Disc (4236208)
  • Clutch Alignment Tool (AT116)
  • Clutch Pressure Plate (T028X)

References

Warranty

  • Manufacturer 1 Year Warranty
