• ACT XT/Race Sprung 4 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTG4)
1 1

ACT XT/Race Sprung 4 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTG4)

ACT XT/Race Sprung 4 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTG4)

TS1-XTG4

Out of stock

$614.00 USD
$758.00 USD $614.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 4 Pad Clutch Kit for the Toyota 4Runner (1987) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The kit includes a four-pad spring-centered race disc with spring-center construction, ensuring proper damping and engagement. All components undergo a four-stage heat-treating process, providing durability and consistent performance under intense use. The precision cover stampings enhance rigidity and stability, making this clutch kit suitable for aggressive driving and racing applications.

This clutch kit is specifically engineered for the 1987 Toyota 4Runner, offering a direct replacement for stock components. It is ideal for street, track, or off-road use where high clamp loads and durability are required. The assembly is a bolt-on upgrade that does not require modifications for installation. The kit includes the pressure plate, clutch disc, and necessary hardware, providing a comprehensive solution for performance enthusiasts. Designed to handle increased power and demanding conditions, this clutch kit enhances overall drivability and longevity for the vehicle.

Overview

ACT XT/Race Sprung 4 Pad Kit

TS1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 16.5
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1985-1987 Toyota 4Runner
  • 1986-1988 Toyota Supra
  • 1984-1987 Toyota Cressida
  • 1982-1985 Toyota Celica
  • 1985-1987 Toyota Pickup

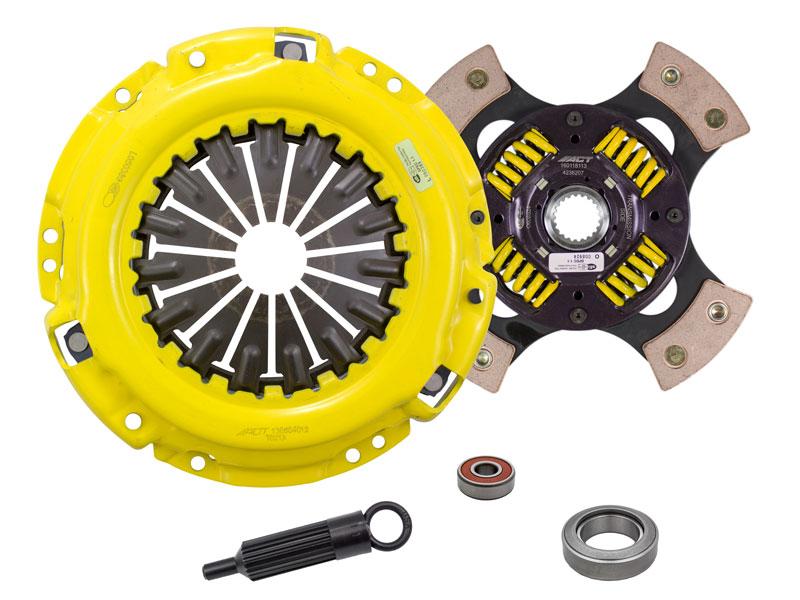

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
